SA065AR0 RBC

Brand - RBC
Item Number - SA065AR0*RBC

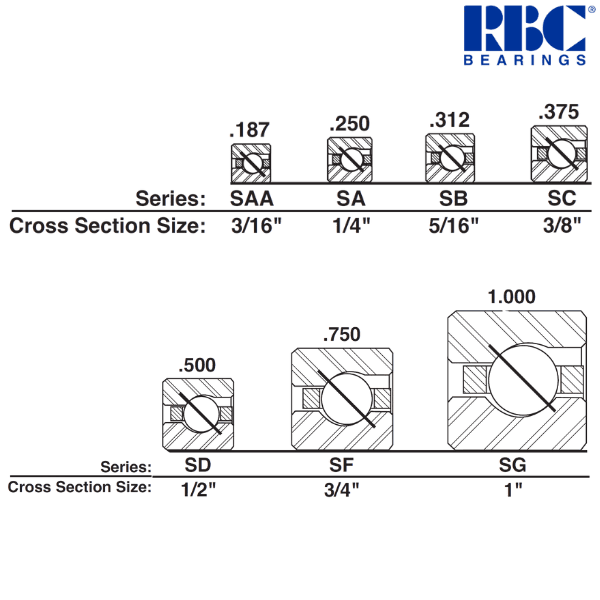

Category - Angular Contact, A-Type Thin Section Ball Bearings

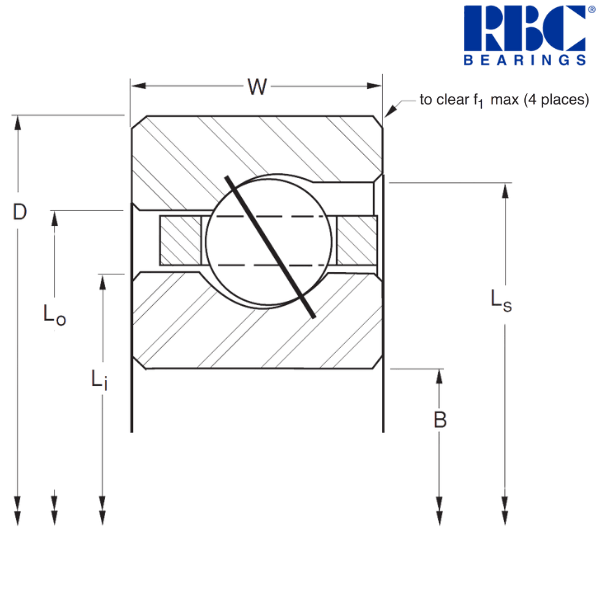

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 6.5 inch
Outside Diameter (D) - 7 inch
Width (W) - 0.25 inch
Land Diameter of Inner Ring (Li) - 6.688 inch
Land Diameter of Outer Ring (Lo) - 6.813 inch
Land Diameter of Counter Bore (Ls) - 6.875 inch
Housing Fillet (f1) - 0.025 inch
Ball Diameter - 0.125 inch
Ball Quantity - 108 pcs.
Approximate Weight - 0.3 lbs
Radial Static Load - 2370 lbf
Radial Dynamic Load - 890 lbf
Thrust Static Load - 6830 lbf
Thrust Dynamic Load - 2580 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 165.1 mm
Outside Diameter (D) - 177.8 mm
Width (W) - 6.35 mm
Land Diameter of Inner Ring (Li) - 169.88 mm
Land Diameter of Outer Ring (Lo) - 173.05 mm
Land Diameter of Counter Bore (Ls) - 174.63 mm
Housing Fillet (f1) - 0.64 mm
Approximate Weight - 0.136 kg
Radial Static Load - 10540 N
Radial Dynamic Load - 3960 N
Thrust Static Load - 30380 N
Thrust Dynamic Load - 11480 N

Description of Suffixes and Prefixes :
S - No seals or shields
A - Standard Width
A - Angular Ball Contact
R - Brass or (Composite)
0 - ABEC 1F

Other salient Points about this Bearing :
• 440C Stainless Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Circular Pocket Ball Separator

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
