SA075AR0 RBC

Brand - RBC
Item Number - SA075AR0*RBC
Category - Angular Contact, A-Type Thin Section Ball Bearings

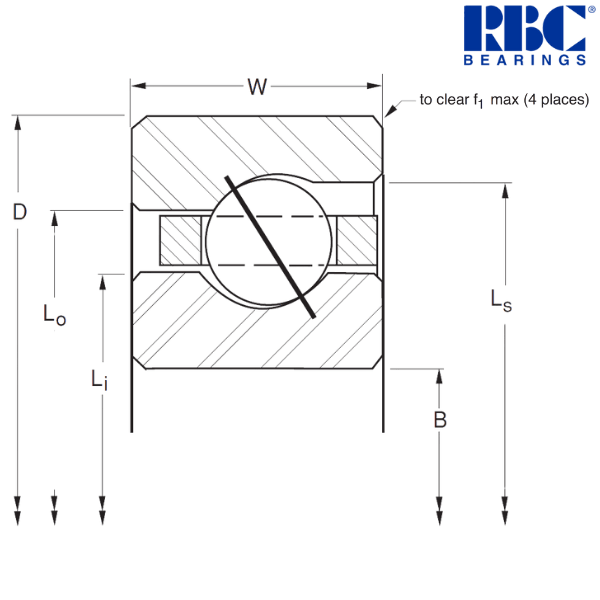

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 7.5 inch
Outside Diameter (D) - 8 inch
Width (W) - 0.25 inch
Land Diameter of Inner Ring (Li) - 7.688 inch
Land Diameter of Outer Ring (Lo) - 7.813 inch
Land Diameter of Counter Bore (Ls) - 7.875 inch
Housing Fillet (f1) - 0.025 inch
Ball Diameter - 0.125 inch
Ball Quantity - 124 pcs.
Approximate Weight - 0.34 lbs
Radial Static Load - 2720 lbf
Radial Dynamic Load - 920 lbf
Thrust Static Load - 7840 lbf
Thrust Dynamic Load - 2660 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 190.5 mm
Outside Diameter (D) - 203.2 mm
Width (W) - 6.35 mm
Land Diameter of Inner Ring (Li) - 195.28 mm
Land Diameter of Outer Ring (Lo) - 198.45 mm
Land Diameter of Counter Bore (Ls) - 200.03 mm
Housing Fillet (f1) - 0.64 mm
Approximate Weight - 0.154 kg
Radial Static Load - 12100 N
Radial Dynamic Load - 4090 N
Thrust Static Load - 34870 N
Thrust Dynamic Load - 11830 N

Description of Suffixes and Prefixes :
S - No seals or shields
A - Standard Width
A - Angular Ball Contact
R - Brass or (Composite)
0 - ABEC 1F

Other salient Points about this Bearing :
• 440C Stainless Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Circular Pocket Ball Separator

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
