SA080AR0 RBC

Brand - RBC
Item Number - SA080AR0*RBC
Category - Angular Contact, A-Type Thin Section Ball Bearings

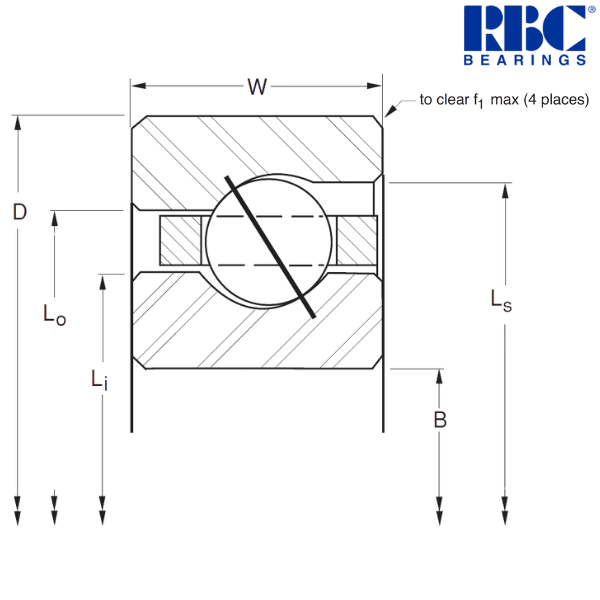

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 8 inch
Outside Diameter (D) - 8.5 inch
Width (W) - 0.25 inch
Land Diameter of Inner Ring (Li) - 8.188 inch
Land Diameter of Outer Ring (Lo) - 8.313 inch
Land Diameter of Counter Bore (Ls) - 8.375 inch
Housing Fillet (f1) - 0.025 inch
Ball Diameter - 0.125 inch
Ball Quantity - 132 pcs.
Approximate Weight - 0.38 lbs
Radial Static Load - 2890 lbf
Radial Dynamic Load - 960 lbf
Thrust Static Load - 8350 lbf
Thrust Dynamic Load - 2770 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 203.2 mm
Outside Diameter (D) - 215.9 mm
Width (W) - 6.35 mm
Land Diameter of Inner Ring (Li) - 207.98 mm
Land Diameter of Outer Ring (Lo) - 211.15 mm
Land Diameter of Counter Bore (Ls) - 212.73 mm
Housing Fillet (f1) - 0.64 mm
Approximate Weight - 0.172 kg
Radial Static Load - 12860 N
Radial Dynamic Load - 4270 N
Thrust Static Load - 37140 N
Thrust Dynamic Load - 12320 N

Description of Suffixes and Prefixes :
S - No seals or shields
A - Standard Width
A - Angular Ball Contact
R - Brass or (Composite)
0 - ABEC 1F

Other salient Points about this Bearing :
• 440C Stainless Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Circular Pocket Ball Separator

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
