SB025XP0 RBC

Brand - RBC
Item Number - SB025XP0*RBC
Category - 4-Point Contact, X-Type Thin Section Ball Bearings

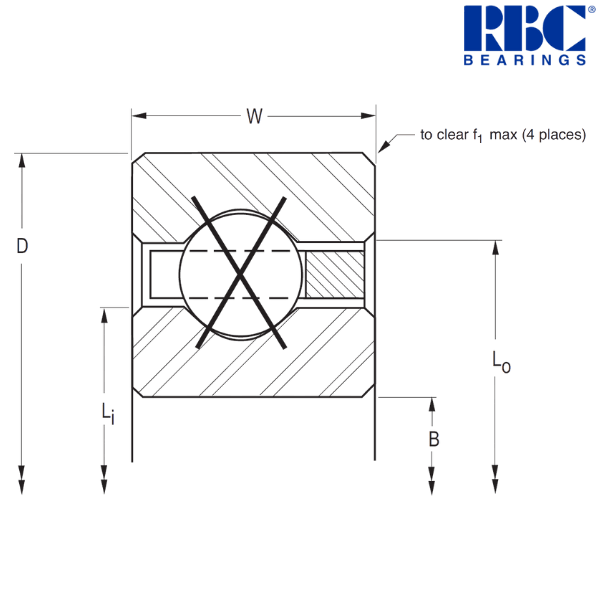

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 2.5 inch
Outside Diameter (D) - 3.125 inch
Width (W) - 0.3125 inch
Land Diameter of Inner Ring (Li) - 2.734 inch
Land Diameter of Outer Ring (Lo) - 2.891 inch
Housing Fillet (f1) - 0.04 inch
Ball Diameter - 0.15625 inch
Ball Quantity - 28 pcs.
Approximate Weight - 0.2 lbs
Radial Static Load - 1140 lbf
Radial Dynamic Load - 848 lbf
Thrust Static Load - 2840 lbf
Thrust Dynamic Load - 1880 lbf
Moment Static Load - 1600 lbf-in
Moment Dynamic Load - 1060 lbf-in

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 63.5 mm
Outside Diameter (D) - 79.375 mm
Width (W) - 7.938 mm
Land Diameter of Inner Ring (Li) - 69.44 mm
Land Diameter of Outer Ring (Lo) - 73.43 mm
Housing Fillet (f1) - 1.02 mm
Approximate Weight - 0.091 kg
Radial Static Load - 5070 N
Radial Dynamic Load - 3770 N
Thrust Static Load - 12630 N
Thrust Dynamic Load - 8360 N
Moment Static Load - 180 Nm
Moment Dynamic Load - 120 Nm

Description of Suffixes and Prefixes :
S - No seals or shields
B - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Notes about this Bearing :
• 440C Stainless Steel
• Large Diameter
• Light Weight
• Snap-Over Ball Separator

* The alphanumeric identification system is used under license.
