SB035XP0 RBC

Brand - RBC
Item Number - SB035XP0*RBC
Category - 4-Point Contact, X-Type Thin Section Ball Bearings

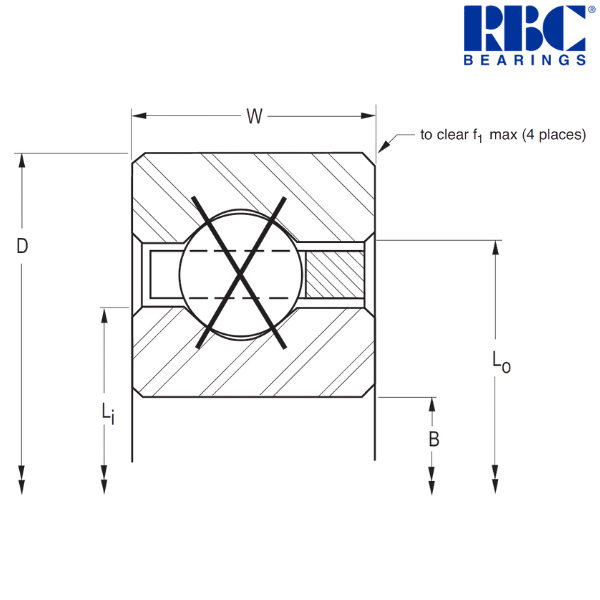

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 3.5 inch
Outside Diameter (D) - 4.125 inch
Width (W) - 0.3125 inch
Land Diameter of Inner Ring (Li) - 3.734 inch
Land Diameter of Outer Ring (Lo) - 3.891 inch
Housing Fillet (f1) - 0.032 inch
Ball Diameter - 0.15625 inch
Ball Quantity - 38 pcs.
Approximate Weight - 0.27 lbs
Radial Static Load - 1540 lbf
Radial Dynamic Load - 1014 lbf
Thrust Static Load - 3860 lbf
Thrust Dynamic Load - 2100 lbf
Moment Static Load - 2940 lbf-in
Moment Dynamic Load - 1600 lbf-in

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 88.9 mm
Outside Diameter (D) - 104.775 mm
Width (W) - 7.938 mm
Land Diameter of Inner Ring (Li) - 94.84 mm
Land Diameter of Outer Ring (Lo) - 98.83 mm
Housing Fillet (f1) - 0.81 mm
Approximate Weight - 0.122 kg
Radial Static Load - 6850 N
Radial Dynamic Load - 4510 N
Thrust Static Load - 17170 N
Thrust Dynamic Load - 9340 N
Moment Static Load - 330 Nm
Moment Dynamic Load - 180 Nm

Description of Suffixes and Prefixes :
S - No seals or shields
B - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Notes about this Bearing :
• 440C Stainless Steel
• Large Diameter
• Light Weight
• Snap-Over Ball Separator

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
