SB042XP0 RBC

Brand - RBC
Item Number - SB042XP0*RBC
Category - 4-Point Contact, X-Type Thin Section Ball Bearings

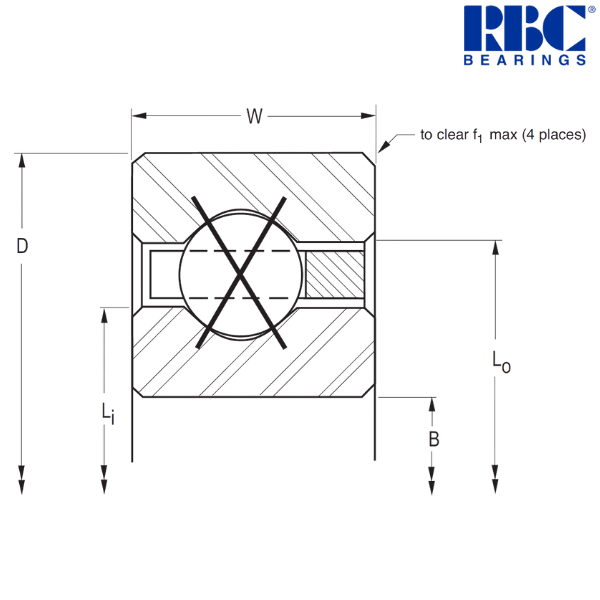

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 4.25 inch
Outside Diameter (D) - 4.875 inch
Width (W) - 0.3125 inch
Land Diameter of Inner Ring (Li) - 4.484 inch
Land Diameter of Outer Ring (Lo) - 4.641 inch
Housing Fillet (f1) - 0.032 inch
Ball Diameter - 0.15625 inch
Ball Quantity - 45 pcs.
Approximate Weight - 0.31 lbs
Radial Static Load - 1830 lbf
Radial Dynamic Load - 1120 lbf
Thrust Static Load - 4570 lbf
Thrust Dynamic Load - 2230 lbf
Moment Static Load - 4170 lbf-in
Moment Dynamic Load - 2040 lbf-in

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 107.95 mm
Outside Diameter (D) - 123.825 mm
Width (W) - 7.938 mm
Land Diameter of Inner Ring (Li) - 113.89 mm
Land Diameter of Outer Ring (Lo) - 117.88 mm
Housing Fillet (f1) - 0.81 mm
Approximate Weight - 0.141 kg
Radial Static Load - 8140 N
Radial Dynamic Load - 4980 N
Thrust Static Load - 20330 N
Thrust Dynamic Load - 9920 N
Moment Static Load - 470 Nm
Moment Dynamic Load - 230 Nm

Description of Suffixes and Prefixes :
S - No seals or shields
B - Standard Width
X - 4-Point Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Notes about this Bearing :
• 440C Stainless Steel
• Large Diameter
• Light Weight
• Snap-Over Ball Separator

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
