SB047AR0 RBC

Brand - RBC
Item Number - SB047AR0*RBC
Category - Angular Contact, A-Type Thin Section Ball Bearings

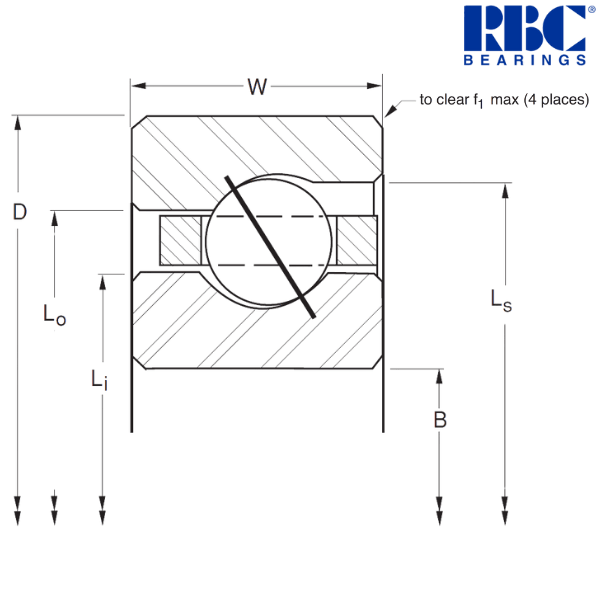

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 4.75 inch
Outside Diameter (D) - 5.375 inch
Width (W) - 0.3125 inch
Land Diameter of Inner Ring (Li) - 4.984 inch
Land Diameter of Outer Ring (Lo) - 5.141 inch
Land Diameter of Counter Bore (Ls) - 5.219 inch
Housing Fillet (f1) - 0.032 inch
Ball Diameter - 0.15625 inch
Ball Quantity - 68 pcs.
Approximate Weight - 0.34 lbs
Radial Static Load - 2390 lbf
Radial Dynamic Load - 1140 lbf
Thrust Static Load - 6910 lbf
Thrust Dynamic Load - 3290 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 120.65 mm
Outside Diameter (D) - 136.525 mm
Width (W) - 7.938 mm
Land Diameter of Inner Ring (Li) - 126.59 mm
Land Diameter of Outer Ring (Lo) - 130.58 mm
Land Diameter of Counter Bore (Ls) - 132.56 mm
Housing Fillet (f1) - 0.81 mm
Approximate Weight - 0.154 kg
Radial Static Load - 10630 N
Radial Dynamic Load - 5070 N
Thrust Static Load - 30740 N
Thrust Dynamic Load - 14630 N

Description of Suffixes and Prefixes :
S - No seals or shields
B - Standard Width
A - Angular Ball Contact
R - Brass or (Composite)
0 - ABEC 1F

Other salient Points about this Bearing :
• 440C Stainless Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Circular Pocket Ball Separator

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
