SB047CP0 RBC

Brand - RBC
Item Number - SB047CP0*RBC

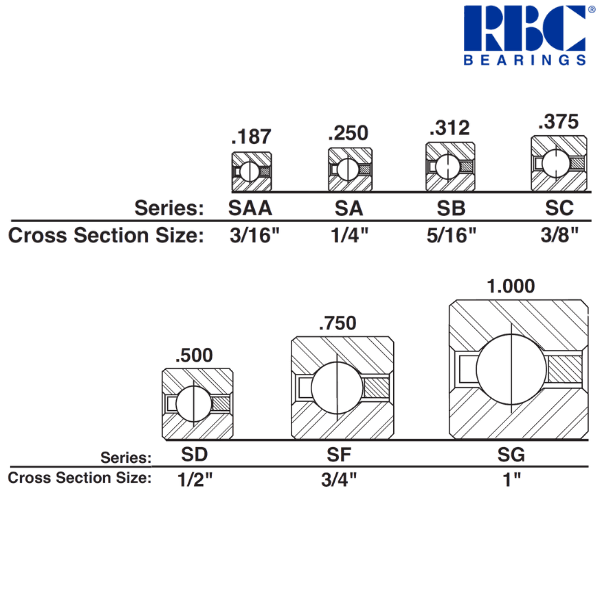

Category - Radial Contact, C-Type Thin Section Ball Bearings

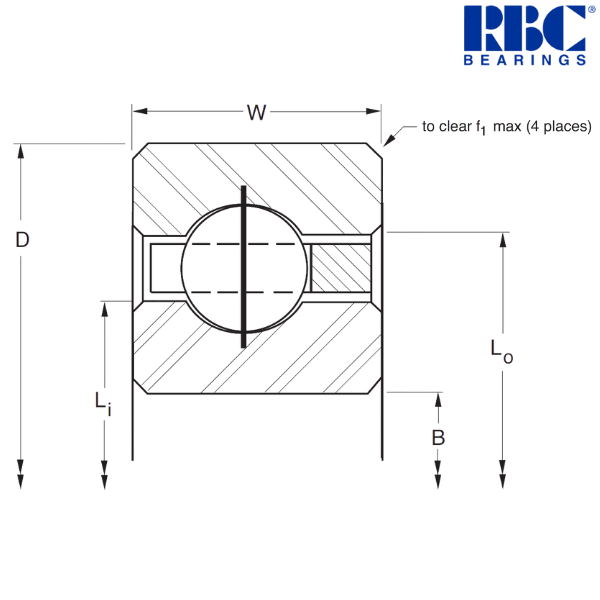

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 4.75 inch
Outside Diameter (D) - 5.375 inch
Width (W) - 0.3125 inch
Land Diameter of Inner Ring (Li) - 4.984 inch
Land Diameter of Outer Ring (Lo) - 5.141 inch
Housing Fillet (f1) - 0.032 inch
Ball Diameter - 0.15625 inch
Ball Quantity - 50 pcs.
Approximate Weight - 0.34 lbs
Radial Static Load - 2030 lbf
Radial Dynamic Load - 1070 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 120.65 mm
Outside Diameter (D) - 136.525 mm
Width (W) - 7.938 mm
Land Diameter of Inner Ring (Li) - 126.59 mm
Land Diameter of Outer Ring (Lo) - 130.58 mm
Housing Fillet (f1) - 0.81 mm
Approximate Weight - 0.154 kg
Radial Static Load - 9030 N
Radial Dynamic Load - 4760 N

Description of Suffixes and Prefixes :
S - No seals or shields
B - Standard Width
C - Radial Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient Points about this Bearing :
• 440C Stainless Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator
