SFE 22 UNIBAL


Country of Origin: SWITZERLAND
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - UNIBAL
Item Number - SFE 22 UNIBAL
Also Known As - SFE22
Category - Rod-End Bearings Maintenance Free in Standard Series

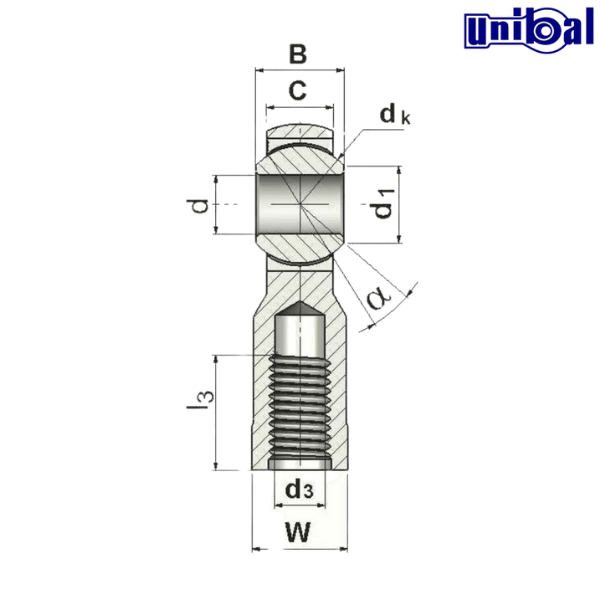

Bore Diameter with Tolerance H7 (d) mm - 22
Width (B) mm - 28 (0 or -0.05)
Width of the Cage or Mount (C) mm - 20 (± 0.2)
Diameter of the Sphere (dk) mm - 38.1
Diameter of Flat (d1) mm - 25.84
d2 (mm) - 50
d3 with Tolerance 6H (mm) - M22 x1.5
d5 (mm) - 37
C4 (mm) - 30
h1 (mm) - 84
l3 (mm) - 40 (± 0.5)
l4 (mm) - 109
l5 (mm) - 12
W (mm) - 34
a° - 15
Basic Static Loading (C0) daN - 5310
Weight (kg) - 0.48

** Images are for representation purposes only
