SFG 10 UNIBAL


Country of Origin: SWITZERLAND
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - UNIBAL
Item Number - SFG 10 UNIBAL
Also Known As - SFG10
Category - Rod-End Bearings with Maintenance in Standard Series
Bore Diameter with Tolerance H7 (d) mm - 10
Width (B) mm - 14 (0 or -0.05)
Width of the Cage or Mount (C) mm - 10.5 (± 0.2)
Diameter of the Sphere (dk) mm - 19.05
Diameter of Flat (d1) mm - 12.92
d2 (mm) - 26
d3 with Tolerance 6H (mm) - M10 x1.5
d5 (mm) - 19
C4 (mm) - 15
h1 (mm) - 43
l3 (mm) - 19 (± 0.5)
l4 (mm) - 56
l5 (mm) - 6.5
W (mm) - 16
Basic Static Loading (C0) daN - 1550
Weight (kg) - 0.07

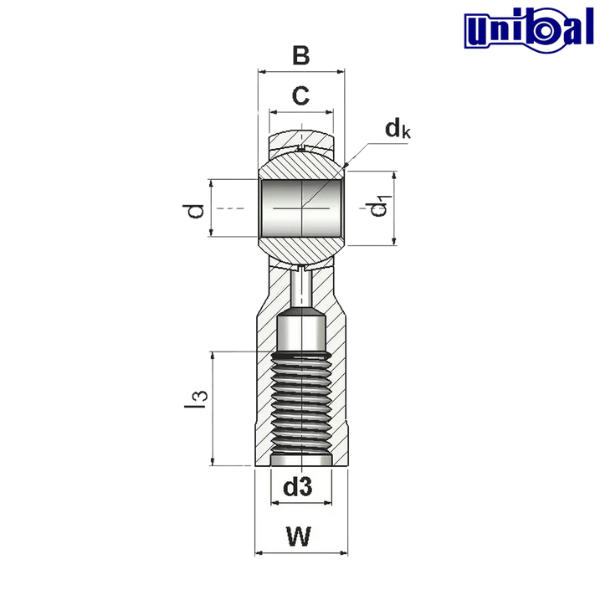

** Images are for representation purposes only
