SFG 14 UNIBAL


Country of Origin: SWITZERLAND
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - UNIBAL
Item Number - SFG 14 UNIBAL
Also Known As - SFG14
Category - Rod-End Bearings with Maintenance in Standard Series

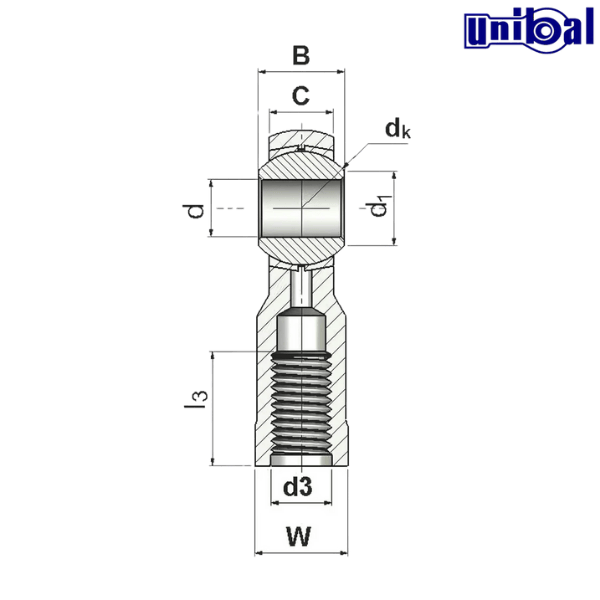

Bore Diameter with Tolerance H7 (d) mm - 14
Width (B) mm - 19 (0 or -0.05)
Width of the Cage or Mount (C) mm - 13.5 (± 0.2)
Diameter of the Sphere (dk) mm - 25.4
Diameter of Flat (d1) mm - 16.86
d2 (mm) - 34
d3 with Tolerance 6H (mm) - M14 x2
d5 (mm) - 25
C4 (mm) - 20
h1 (mm) - 57
l3 (mm) - 25 (± 0.5)
l4 (mm) - 74
l5 (mm) - 8
W (mm) - 21
Basic Static Loading (C0) daN - 2660
Weight (kg) - 0.15

** Images are for representation purposes only
