Description
Brand - INA
Item Number - SL045020-D-PP-RR-C5-GA22 INA
Also known as - 0861837025404 SL045020-D-PP-RR-C5
Category - Cylindrical Roller Bearing Double Row
Inner (d) MM - 100
Outer (D) MM - 150
Width (B) MM - 67
Inner (d) Inch - 3.937
Outer (D) Inch - 5.9055
Width (B) Inch - 2.6378
Weight (kg) - 3.95
Bore - C - Cylindrical Bore
Seal - 2L - LS-seal at Both Sides
Cage Type - FC - Full Complement, No Cage
External Modification - No External Modification
Radial Internal Play - C5 Internal Play (Higher than C4)
Precision - Grease -50°C / +120°C
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C

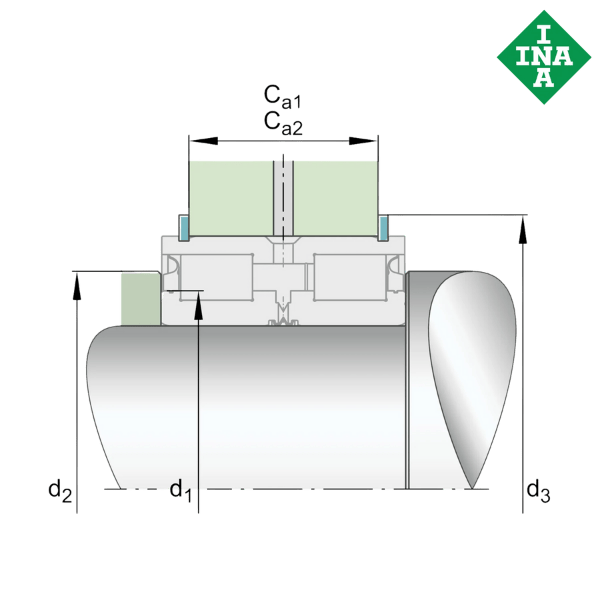

** Images are for representation purposes only
