Description
Brand - INA
Item Number - SL045030-D-PP INA
Also known as - 0893188030000 NNF5030ADA-2LSV
EAN - 4054369585100
Inner (d) MM - 150
Outer (D) MM - 225
Width (B) MM - 100
Inner (d) Inch - 5.9055
Outer (D) Inch - 8.8583
Width (B) Inch - 3.937
Weight (kg) - 13.5
Bore - C - Cylindrical Bore
Seal - 2L - LS-seal at Both Sides
Cage Type - FC - Full Complement, No Cage
External Modification - No External Modification
Radial Internal Play - Cn Normal Internal Play
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C

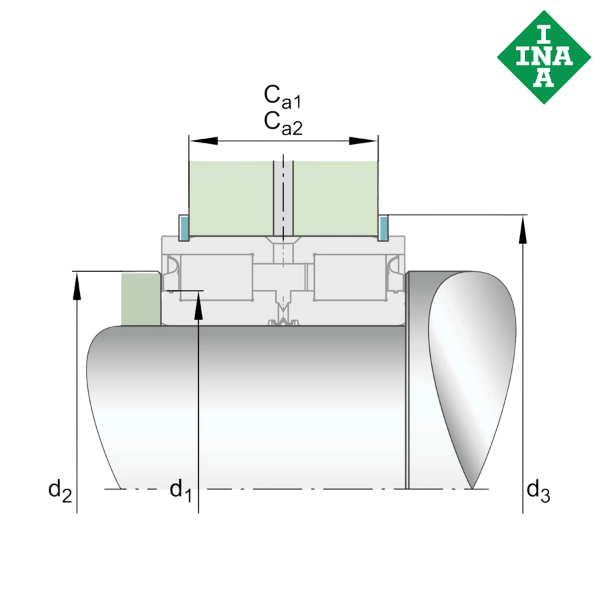

** Images are for representation purposes only
