Description
Brand - INA
Item Number - SL185008-S3-A-C4 INA
Also known as - 2194520040
Category - Cylindrical Roller Bearing Double Row

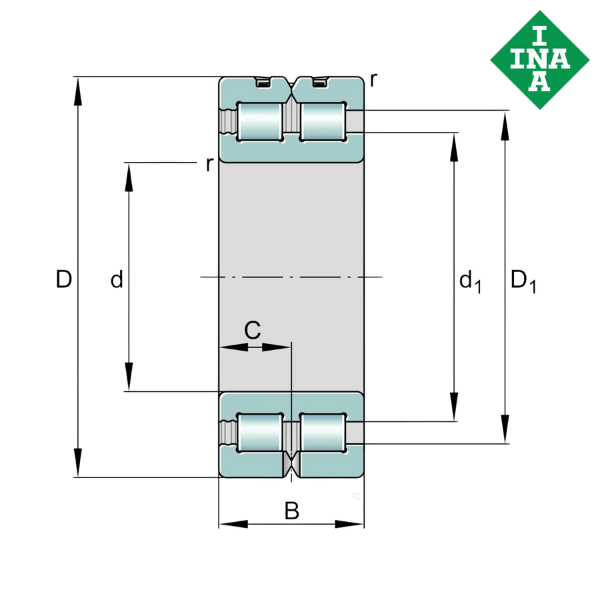

Inner (d) MM - 40
Outer (D) MM - 68
Width (B) MM - 38
Inner (d) Inch - 1.5748
Outer (D) Inch - 2.6772
Width (B) Inch - 1.4961
Weight (kg) - 0.56
Bore - C - Cylindrical Bore
Seal - No Seal
Cage Type - FC - Full Complement, No Cage
External Modification - No External Modification
Radial Internal Play - C4 Internal Play (Higher than C3)
Precision - Standard Precision
Heat Stabilization - S3 - Temperatures up to 300 °C
** Images are for representation purposes only
