Description

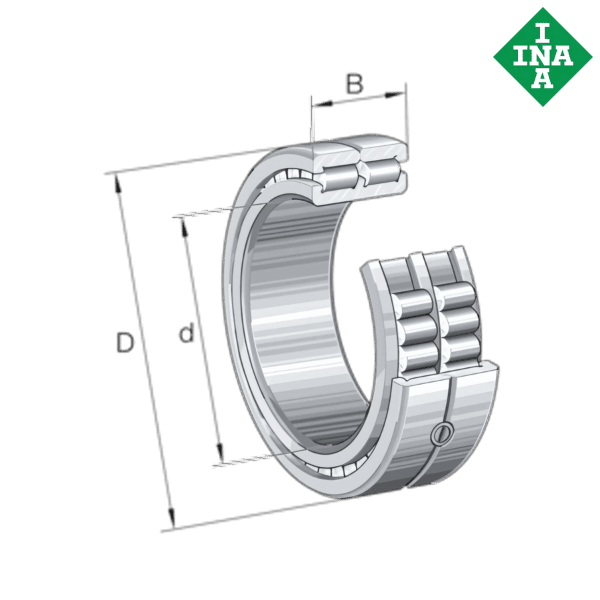

Brand - INA
Item Number - SL185014-A INA
Also known as - 0002687980000 NNCF5014V
EAN - 4012802418088

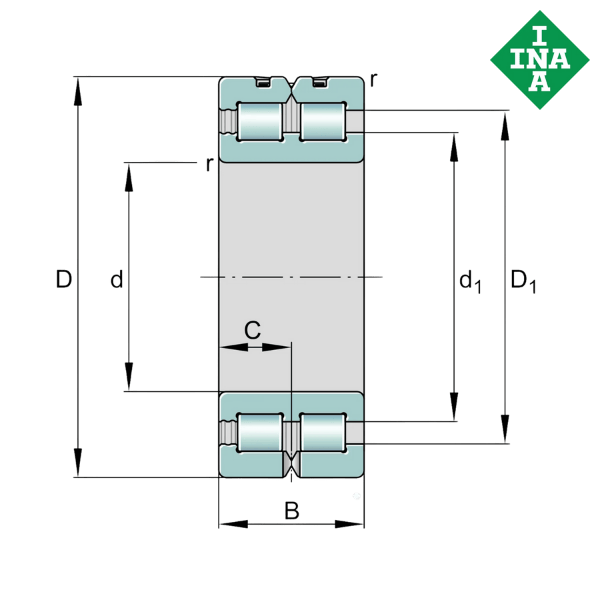

Inner (d) MM - 70
Outer (D) MM - 110
Width (B) MM - 54
Inner (d) Inch - 2.7559
Outer (D) Inch - 4.3307
Width (B) Inch - 2.126
Weight (kg) - 1.85
Bore - C - Cylindrical Bore
Seal - No Seal
Cage Type - FC - Full Complement, No Cage
External Modification - No External Modification
Radial Internal Play - Cn Normal Internal Play
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
** Images are for representation purposes only
