Description
Brand - Unibal
Item Number - SMG 22 .20 UNIBAL
Also Known As - SMG22.20
Category - Rod-End Bearings with Maintenance in Special Thread Series

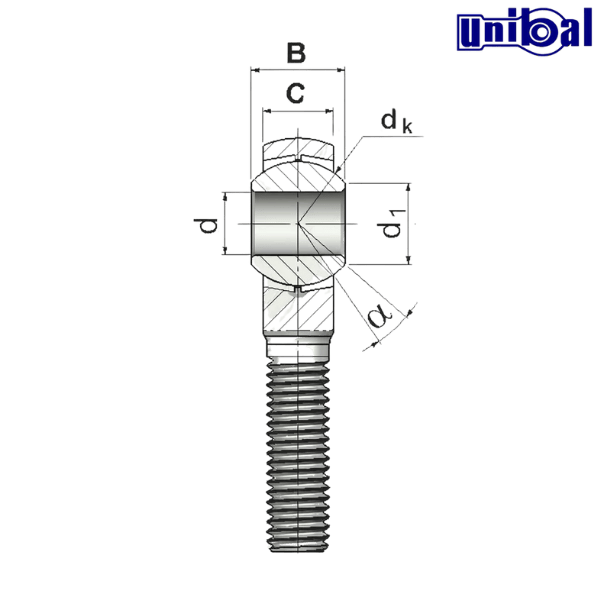

Bore Diameter with Tolerance H7 (d) mm - 22
Width (B) mm - 28 (0 or -0.05)
Width of the Cage or Mount (C) mm - 20 (± 0.2)
Diameter of the Sphere (dk) mm - 38.1
Diameter of Flat (d1) mm - 25.84
d2 (mm) - 50
d3 with Tolerance 6g (mm) - M22 x2.5
h (mm) - 84
l1 (mm) - 51 (± 0.5)
l2 (mm) - 109
a° - 15
Basic Static Loading (C0) daN - 5300
Weight (kg) - 0.42
Suffix Description :
.20 - Special Thread
** Images are for representation purposes only
