Description
Brand - UNIBAL
Item Number - SS 14 .45 UNIBAL
Also Known As - SS14.45
Category - Spherical Bearings with Maintenance in Stainless Steel Series SS

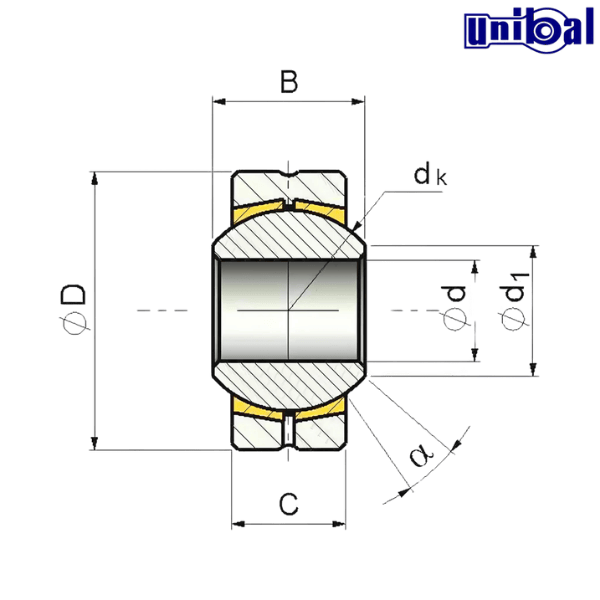

Bore Diameter with Tolerance H7 (d) mm - 14
Width (B) mm - 19 (0 or -0.05)
Width of the Cage or Mount (C) mm - 13.5 (± 0.2)
Diameter of the Sphere (dk) mm - 25.4
Diameter of Flat (d1) mm - 16.86
Outer Diameter with Tolerance h6 (D) mm - 34
a° - 16
Basic Static Loading (C0) daN - 5830
Weight (kg) - 0.083
Suffix Description :
.45-Stainless Steel

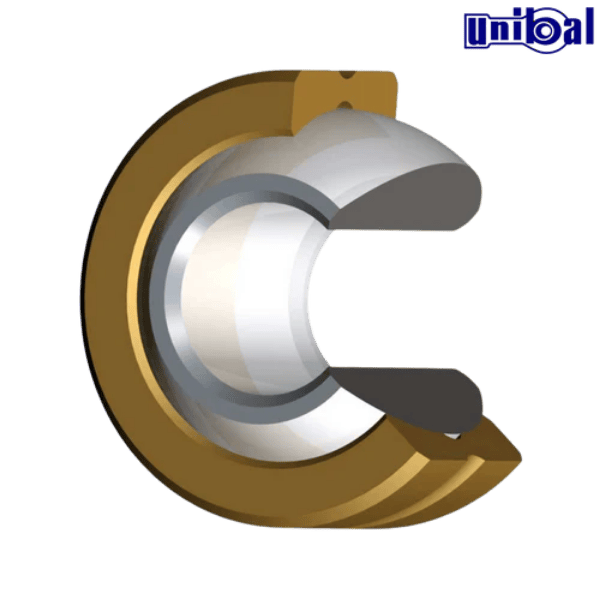

** Images are for representation purposes only
