Description
Brand - UNIBAL
Item Number - SS 25 .45 UNIBAL
Also Known As - SS25.45
Category - Spherical Bearings with Maintenance in Stainless Steel Series SS

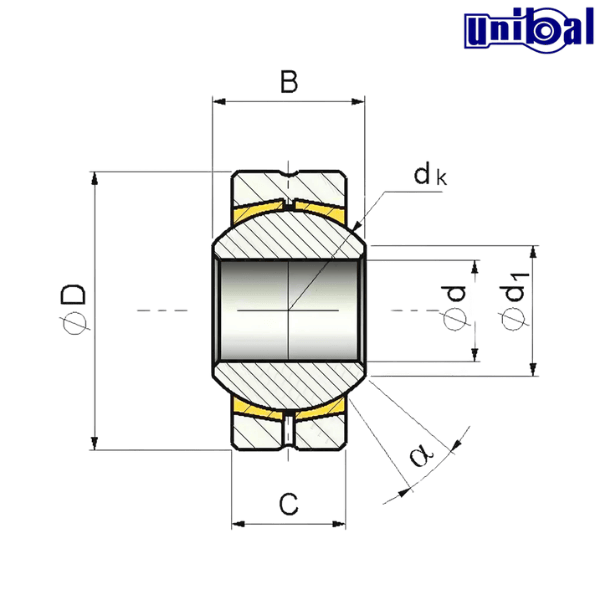

Bore Diameter with Tolerance H7 (d) mm - 25
Width (B) mm - 31 (0 or -0.05)
Width of the Cage or Mount (C) mm - 22 (± 0.2)
Diameter of the Sphere (dk) mm - 42.85
Diameter of Flat (d1) mm - 29.6
Outer Diameter with Tolerance h6 (D) mm - 56
a° - 15
Basic Static Loading (C0) daN - 16030
Weight (kg) - 0.36
Suffix Description :
.45-Stainless Steel

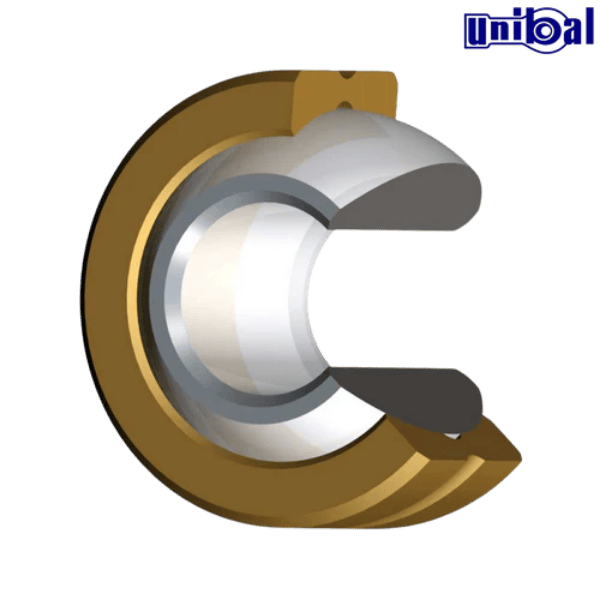

** Images are for representation purposes only
