Description
Brand - UNIBAL
Item Number - SS 5 .45 UNIBAL
Also Known As - SS5.45
Category - Spherical Bearings with Maintenance in Stainless Steel Series SS

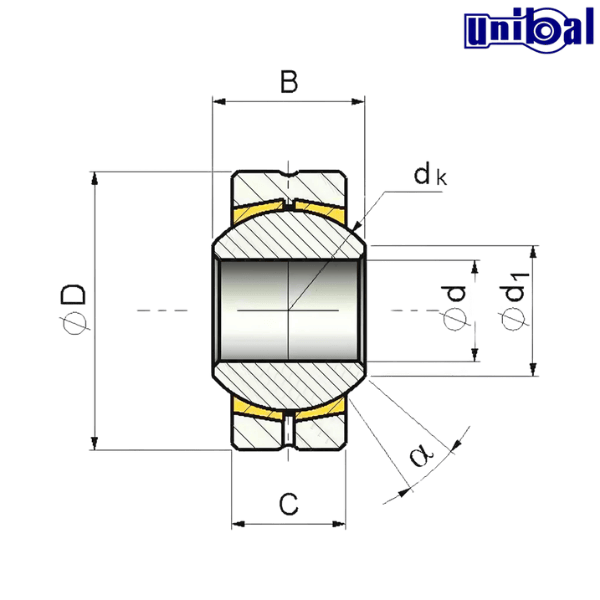

Bore Diameter with Tolerance H7 (d) mm - 5
Width (B) mm - 8 (0 or -0.05)
Width of the Cage or Mount (C) mm - 6 (± 0.2)
Diameter of the Sphere (dk) mm - 11.11
Diameter of Flat (d1) mm - 7.71
Outer Diameter with Tolerance h6 (D) mm - 16
a° - 13
Basic Static Loading (C0) daN - 1130
Weight (kg) - 0.009
Suffix Description :
.45-Stainless Steel

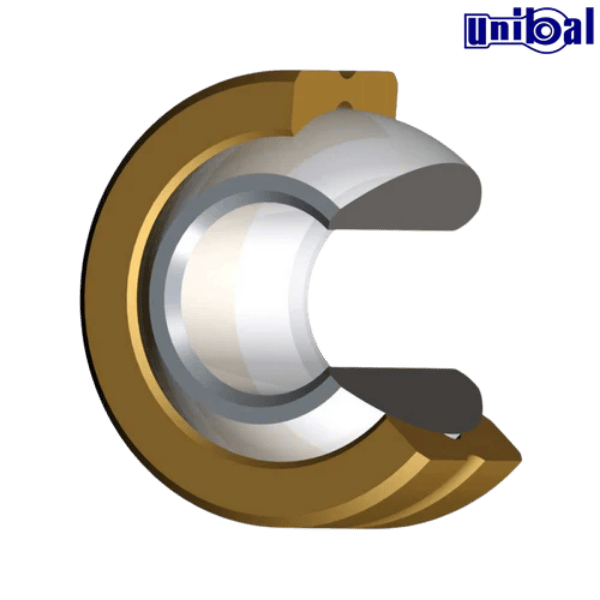

** Images are for representation purposes only
