Description
Brand - UNIBAL
Item Number - SSE 30 .45 UNIBAL
Also Known As - SSE30.45
Category - Spherical Bearings with Maintenance Free in Stainless Steel Series SSE

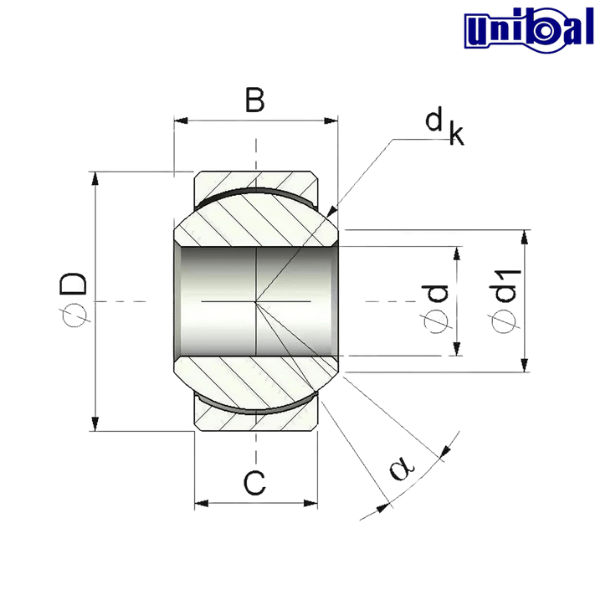

Bore Diameter with Tolerance H7 (d) mm - 30
Width (B) mm - 37 (0 or -0.05)
Width of the Cage or Mount (C) mm - 25 (± 0.2)
Diameter of the Sphere (dk) mm - 50.8
Diameter of Flat (d1) mm - 34.8
Outer Diameter with Tolerance h6 (D) mm - 66
a° - 17
Basic Static Loading (C0) daN - 21590
Weight (kg) - 0.57
Suffix Description :
.45 - Stainless Steel

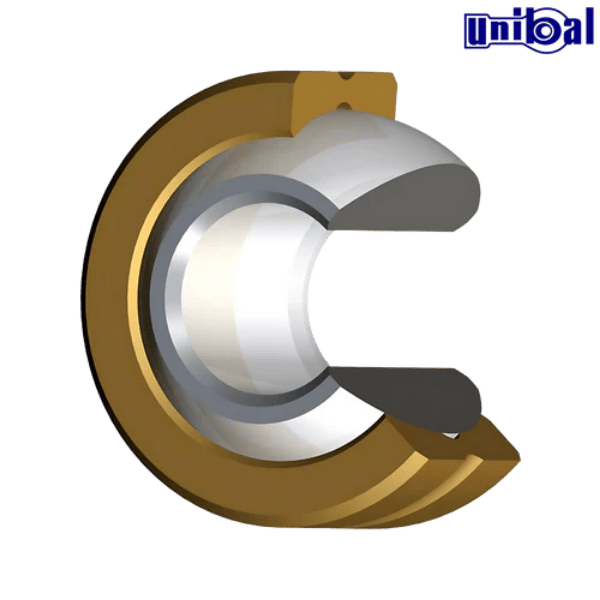

** Images are for representation purposes only
