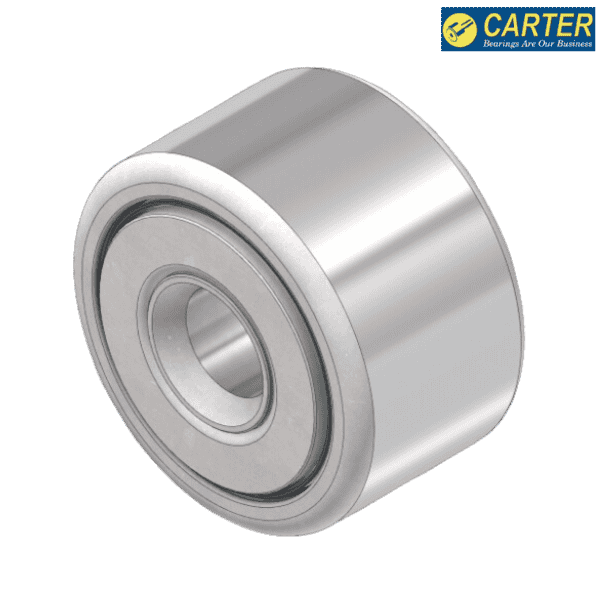

Description
Brand - CARTER
Item Number - SY-32-S CARTER
Category - Standard Stainless Cylindrical Sealed Yoke Roller

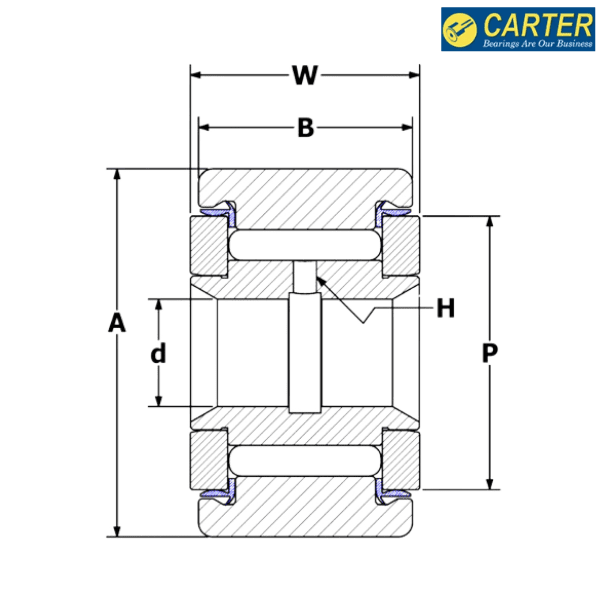

Imperial :
Roller Outer Diameter (A) inch - 1
Roller Width (B) inch - 0.625
Bore Diameter (D) inch - 0.313
Overall Width (W) inch - 0.6875
Oil Hole Diameter (H) inch - 0.09375
Minimum Boss Diameter (P) inch - 0.640625
Shaft Diameter(Ø) Push Fit (inch) - 0.312
Shaft Diameter(Ø) Drive Fit (inch) - 0.3126
Shaft Diameter(Ø) Press Fit (inch) - 0.3128
Maximum Static Capacity (lbf) - 5400
Basic Dynamic Rating (lbf) - 2000
Limiting Speed (rpm) - 4800
Metric :
Roller Outer Diameter (A) mm - 25.4
Roller Width (B) mm - 15.875
Bore Diameter (D) mm - 7.9502
Overall Width (W) mm - 17.4625
Oil Hole Diameter (H) mm - 2.38125
Minimum Boss Diameter (P) mm - 16.271875
Shaft Diameter(Ø) Push Fit (mm) - 7.9248
Shaft Diameter(Ø) Drive Fit (mm) - 7.94004
Shaft Diameter(Ø) Press Fit (mm) - 7.94512
Maximum Static Capacity (N) - 24020.388
Basic Dynamic Rating (N) - 8896.44
**Images are for representation purposes only
