Description
Brand - KAYDON
Item Number - T01-00425NAA KAYDON
Also Known As - KDN.T01-00425NAA
Category - Reali-Slim TT Turntable Thin Section Bearings, Internal Gear
Inner Diameter (d) inch - 3.422
Outer Diameter (D) inch - 5
Recess Diameter Inner Ring (d2) inch - 4.148
Recess Diameter Outer Ring (D2) inch - 4.356
Dynamic Load Rating, Radial Direction (CK) lbf - 750
Basic Load Rating, Moment Dynamic (CM) lbf·inch - 1200
Basic Load Rating, Radial Static (C0) lbf - 1290
Basic Load Rating, Axial Static (C0a) lbf - 3220
Basic Load Rating, Moment Static (C0M) lbf·inch - 2740
Static Torque (lbf·inch) - 7.4
Weight (kg) - 0.30390664
Attachment Holes, Inner Ring (J) inch - 3.813
Attachment Holes, Outer Ring (J1) inch - 4.688
Gear (J2) inch - 3.453
Number of Teeth - 221

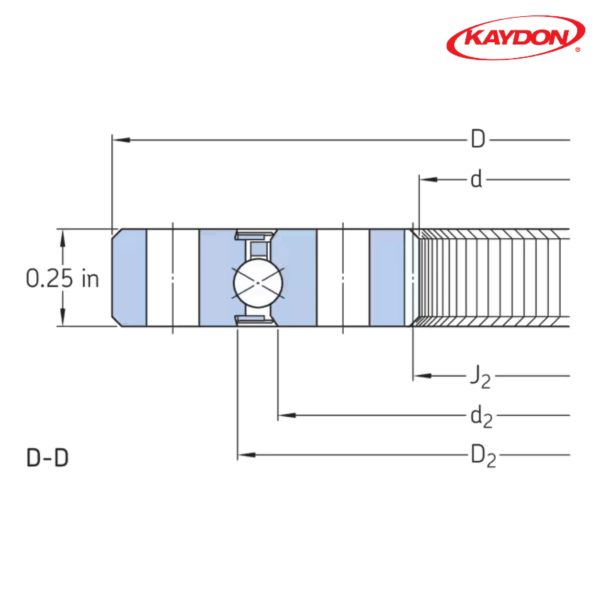

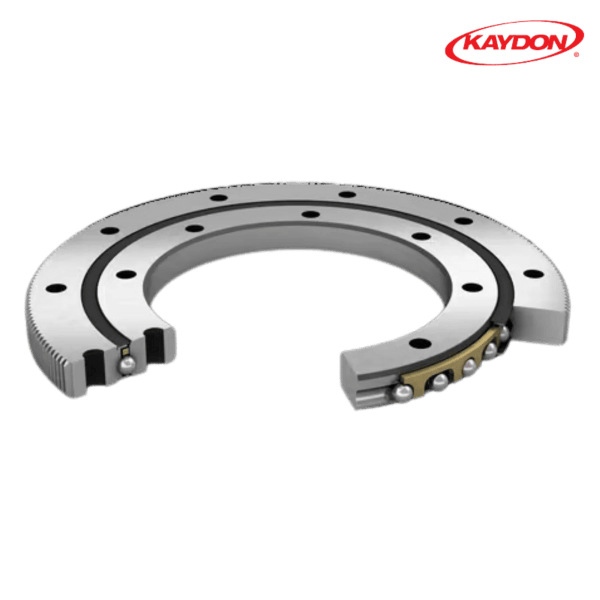

** Images are for representation purposes only
