Description
Brand - KAYDON
Item Number - T01-00500EAA KAYDON
Also Known As - KDN.T01-00500EAA

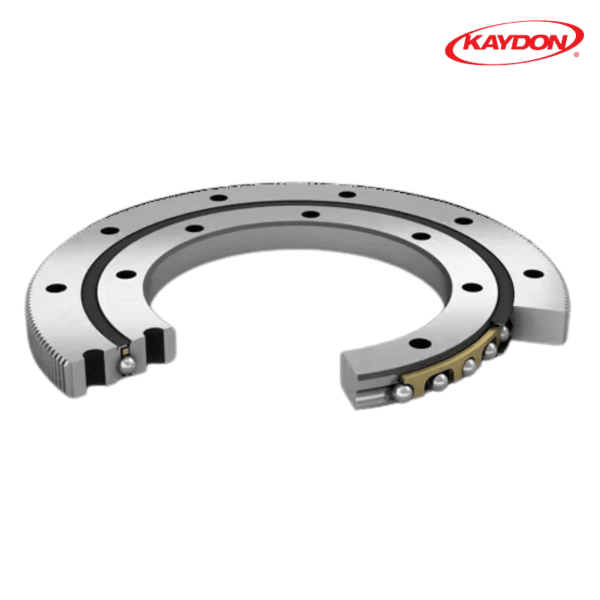

Category - Reali-Slim TT Turntable Thin Section Bearings, External Gear

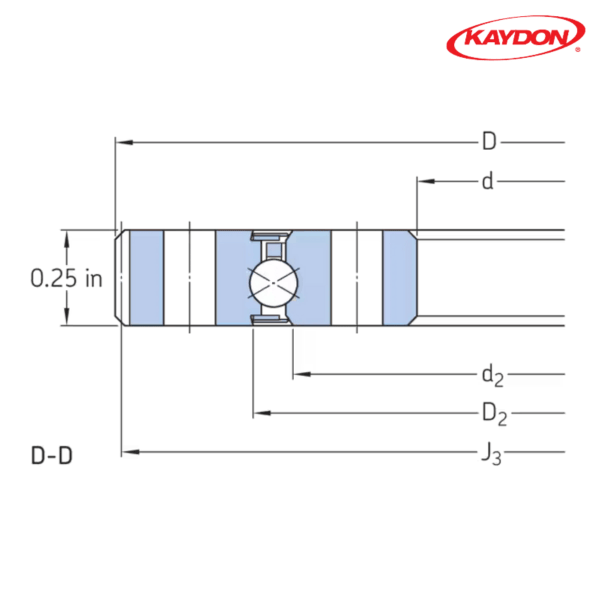

Inner Diameter (d) inch - 4.25
Outer Diameter (D) inch - 5.828
Recess Diameter Inner Ring (d2) inch - 4.898
Recess Diameter Outer Ring (D2) inch - 5.106
Dynamic Load Rating, Radial Direction (CK) lbf - 830
Basic Load Rating, Moment Dynamic (CM) lbf·inch - 1560
Basic Load Rating, Radial Static (C0) lbf - 1520
Basic Load Rating, Axial Static (C0a) lbf - 3790
Basic Load Rating, Moment Static (C0M) lbf·inch - 3790
Static Torque (lbf·inch) - 9
Weight (kg) - 0.35380176

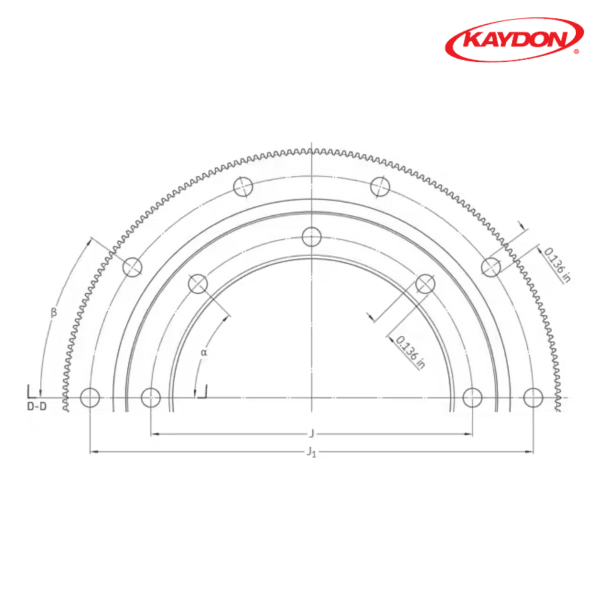

Attachment Holes, Inner Ring (J) inch - 4.563
Attachment Holes, Outer Ring (J1) inch - 5.438
Gear (J3) inch - 5.797
Number of Teeth - 371
** Images are for representation purposes only
