| Inner Diameter | 304.8 mm |
| Outer Diameter | 1146.175 mm |
| Height | 317.5 mm |
| Feature Diameter | 990.6 mm |
| Bearing Weight | 2530.0 kg |
| Basic Static Load Rating, Axial | 136560000.0 N |
| Outer Diameter Of Shaft Washer | 1143.0 mm |
| Spherical Radius | 2000.3 mm |
| Maximum Housing Chamfer Diameter | 38.2 mm |
Description

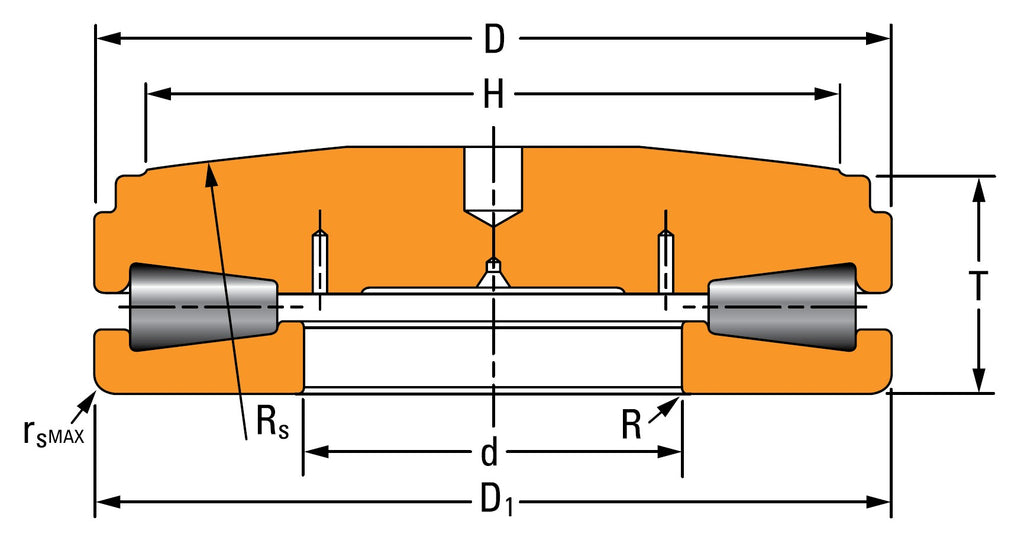

Dimension Denotation of Diagram :
d – Inner Diameter
D – Outer Diameter
D1 – Outer Diameter Of Shaft Washer
T – Height
H – Feature Diameter
Rs – Spherical Radius
R – Maximum Shaft Chamfer Diameter
rs max – Maximum Housing Chamfer Diameter
Other salient points to be noted:
Designed for the intense pressures of the metals industry, the Timken TTHDSX-1 is a thrust tapered roller bearing built for rolling mill screw-down systems. It features an axial bore in the lower race, offering specific mounting advantages for robust machinery.
-
Industry Specific: Specifically designed for rolling mill screw-down systems.
-
High Load Capacity: Full complement (cageless) design maximizes roller contact and load capacity.
-
Axial Bore Design: Features one lower tapered race with an integrated axial bore.
-
Unique Profile: Includes one upper tapered race engineered with a special convex profile.
** Images are for representation purposes only
