T1260 TIMKEN


Download Data Sheet
Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Description

Brand - TIMKEN
Item Number - T1260 TIMKEN

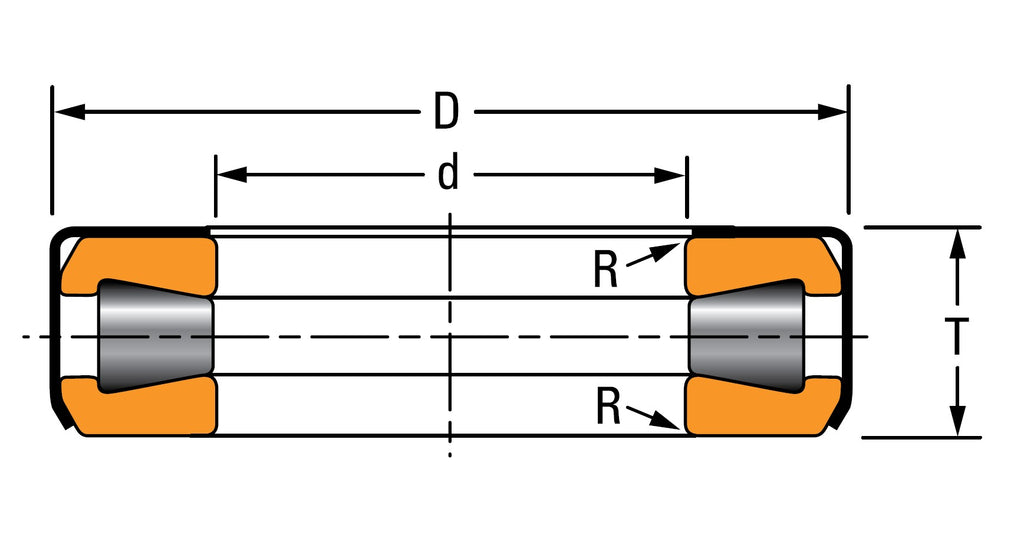

Category - Tapered Roller Thrust Bearing (TTC Type)
Bore Diameter (d) mm - 32.004
Bore Diameter (d) inch - 1.2600
Outer Diameter (D) mm - 55.562
Outer Diameter (D) inch - 2.1875
Width (T) mm - 15.875
Width (T) inch - 0.6250
Maximum Shaft Fillet Radius (R) mm - 0.8
Maximum Shaft Fillet Radius (R) inch - 0.03
Steering Pivot Rating (N) - 27600
Steering Pivot Rating (lbf) - 6200
Weight (kg) - 0.17
Weight (lbs) - 0.37
Oil Holes In Retainer - NO
Oil Holes In Retainer (Part Number) - T1260W

** Images are for representation purposes only
