| Inner Diameter | 49.0 mm |
| Outer Diameter | 85.471 mm |
| Height | 16.383 mm |
| Bearing Weight | 0.4 kg |
| Basic Static Load Rating, Axial | 56500.0 N |
| Chamfer Diameter | 1.6 mm |
Description

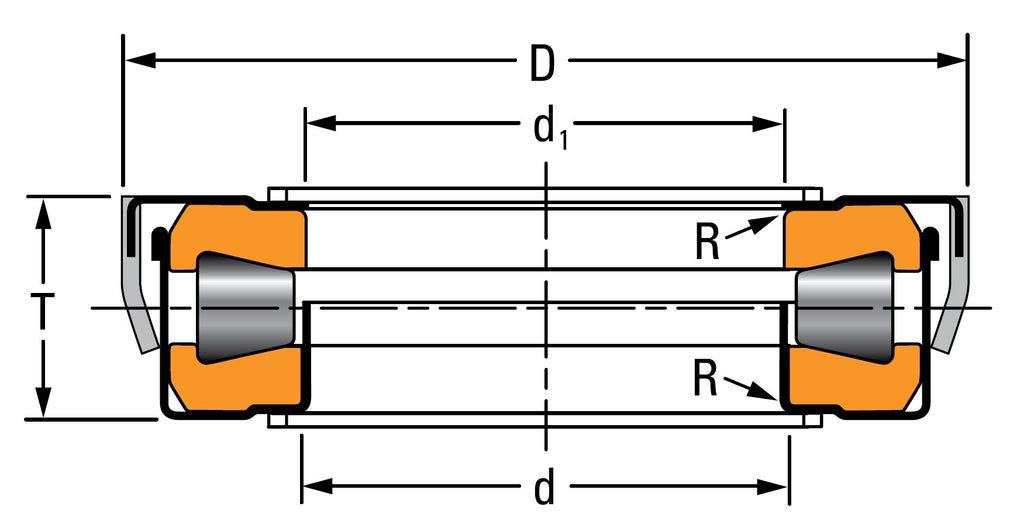

Dimension Denotation of Diagram :
d – Inner Diameter
D – Outer Diameter
T – Height
R – Chamfer Diameter
Other salient points to be noted:
For superior performance and added protection in oscillating applications, choose the Timken TTCL Thrust Tapered Roller Bearing. This premium bearing features a heavy-duty, cageless design combined with a sealed retainer to keep your machinery running smoothly and reliably in tough conditions.
-
Optimized for Oscillation: Designed specifically to withstand the rigorous demands of oscillating applications.
-
Full Complement Design: Engineered without a cage, utilizing a full complement of rollers for ultimate load distribution and capacity.
-
Heavy-Duty Components: Includes two precision-machined thrust tapered races and durable rollers.
-
Premium TTCL Retainer with Seal: Outfitted with a specialized two-piece stamped steel retainer featuring an O.D. (outside diameter) seal for enhanced protection.
-
Hassle-Free Installation: The outside retainer safely bundles the races and rollers together, ensuring components remain secure throughout shipping and installation.
** Images are for representation purposes only
