T4 PFV 25 10 120 NADELLA

Brand - NADELLA
Item Number - T4 PFV 25 10 120* NADELLA

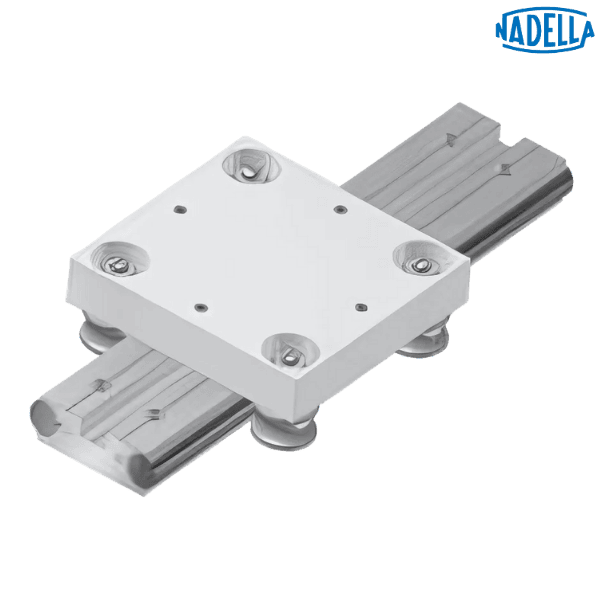

Category - Carriages with Anodised Aluminium Body with Four Guide Rollers Type PFV with “Gothic Arch” Profile

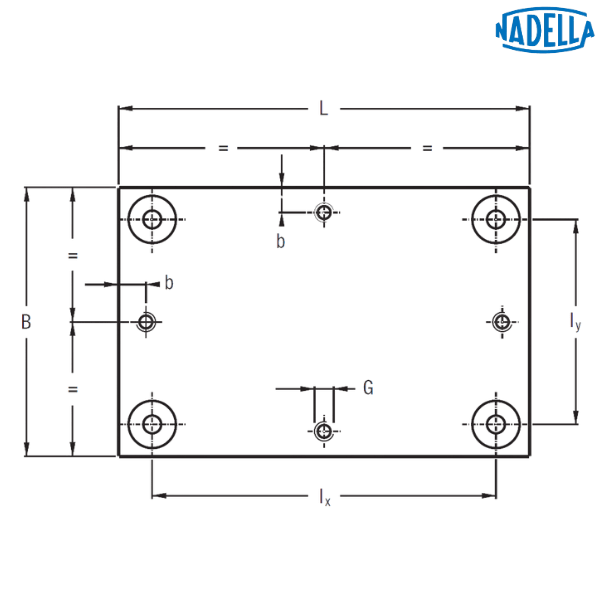

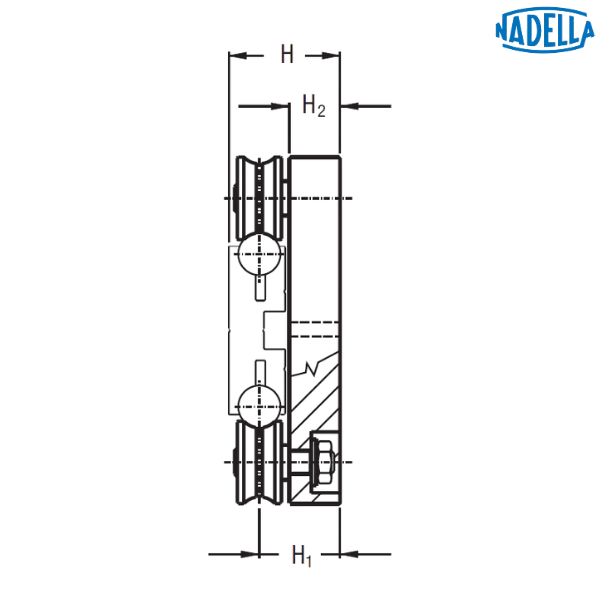

Principal Dimensions & Load Ratings (Metric):
Dimension (L) - 120 mm
Dimension (B) - 120 mm
Dimension (Ix) - 85 mm
Dimension (Iy) - 85 mm
Dimension (H) - 41 mm
Dimension (H1) - 28 mm
Dimension (H2) - 20.5 mm
Dimension (G) - M8
Dimension (b) - 15 mm
Weight - 0.96 kg
Recommended Pairings - DC 10.54

Description of Prefix:
T4 PFV - Carriages with anodised aluminium body with four guide rollers type PFV with “gothic arch” profile for C and DC rails of Base-Line system, and LM rails of U-Line system

Other salient points to be noted:
* Available with stainless steel guide rollers (NX)

• Carriages are complete with guide rollers
• Pressure angle α for load calculation: 60°

♦ ♦ Images are for representation purposes only
