Description
Brand - NADELLA
Item Number - T4 PFV 43 22 180 NADELLA
Category - Carriages with Anodised Aluminium Body with Four Guide Rollers with “Gothic Arch” Profile

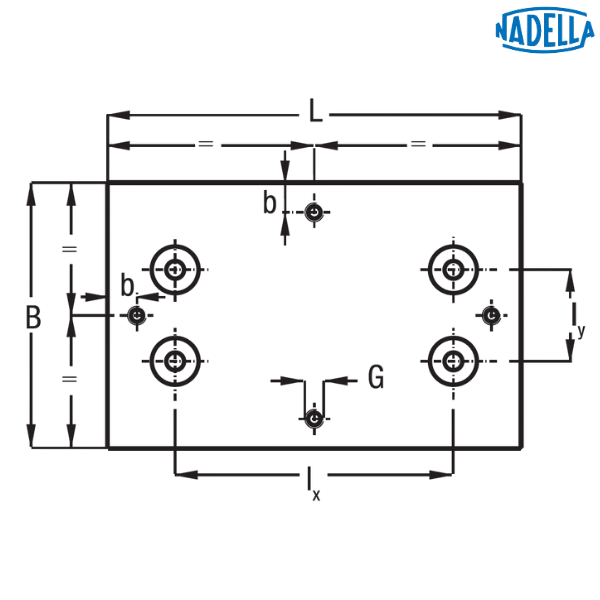

Principal Dimensions & Load Ratings (Metric):
Dimension (L) - 180 mm
Dimension (B) - 180 mm
Dimension (Ix) - 127 mm
Dimension (Iy) - 62 mm

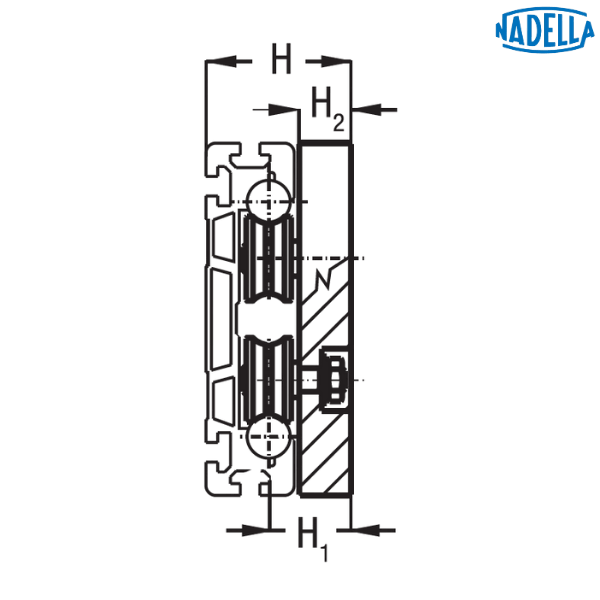

Dimension (H) - 74 mm
Dimension (H1) - 42 mm
Dimension (H2) - 28 mm
Dimension (G) - M10
Dimension (b) - 20 mm
Weight - 3.1 kg
Recommended Pairings - LM 180
Description of Prefix:
T4 RCL - Carriages with black anodised aluminium body with four floating guide rollers type RAL with “gothic arch” profile for LM rails of U-Line system
Other salient points to be noted:
• Dimensions valid also for T4 RAL and T4 RYL

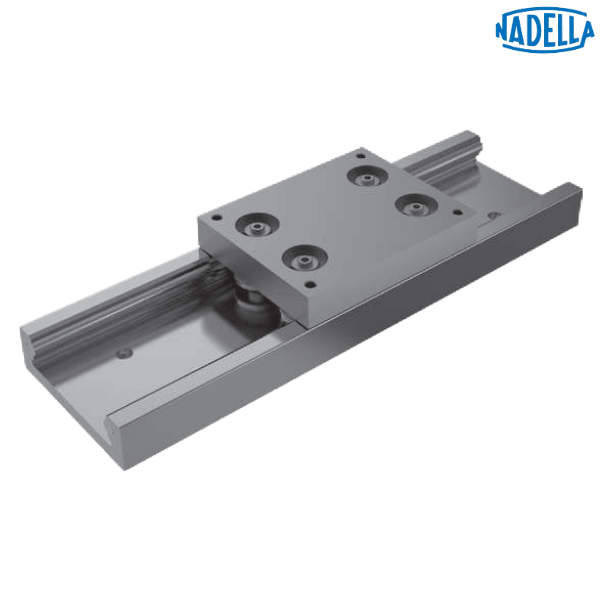

♦ ♦ Images are for representation purposes only
Item Number - T4 PFV 43 22 180 NADELLA
Category - Carriages with Anodised Aluminium Body with Four Guide Rollers with “Gothic Arch” Profile
Principal Dimensions & Load Ratings (Metric):
Dimension (L) - 180 mm
Dimension (B) - 180 mm
Dimension (Ix) - 127 mm
Dimension (Iy) - 62 mm
Dimension (H) - 74 mm
Dimension (H1) - 42 mm
Dimension (H2) - 28 mm
Dimension (G) - M10
Dimension (b) - 20 mm
Weight - 3.1 kg
Recommended Pairings - LM 180
Description of Prefix:
T4 RCL - Carriages with black anodised aluminium body with four floating guide rollers type RAL with “gothic arch” profile for LM rails of U-Line system
Other salient points to be noted:
• Dimensions valid also for T4 RAL and T4 RYL
♦ ♦ Images are for representation purposes only
