Description
Brand - NADELLA
Item Number - T4 RCL 35 10 220 NADELLA
Category - Carriages with Anodised Aluminium Body with Four Guide Rollers with “Gothic Arch” Profile
Principal Dimensions & Load Ratings (Metric):

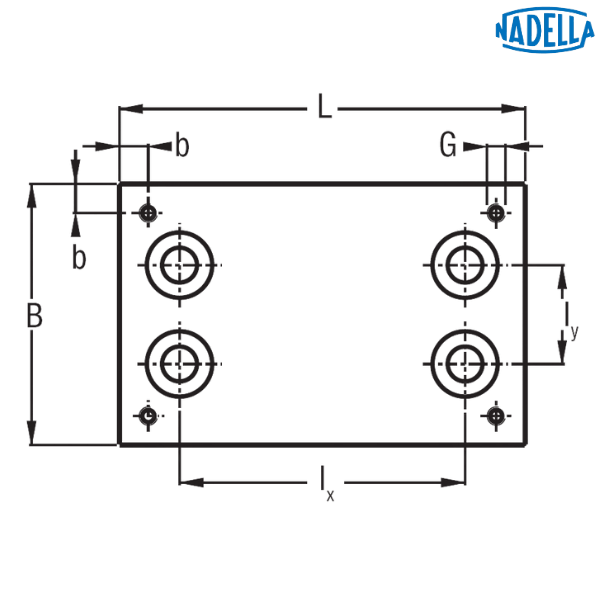

Dimension (L) - 220 mm
Dimension (B) - 120 mm
Dimension (Ix) - 169 mm
Dimension (Iy) - 50.7 mm

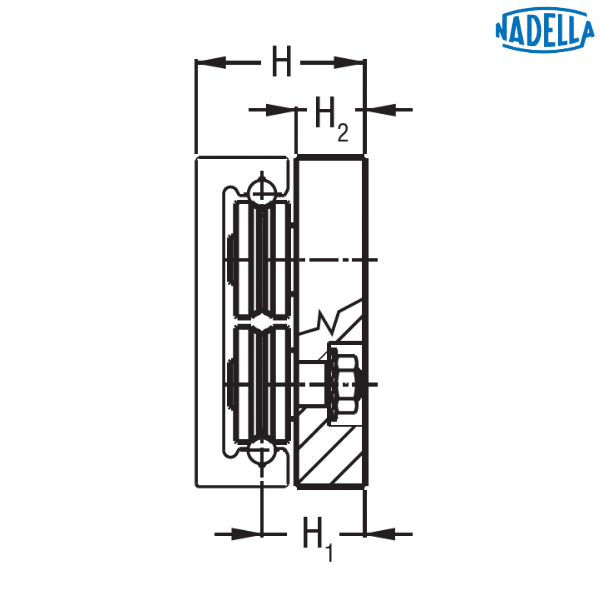

Dimension (H) - 58.5 mm
Dimension (H1) - 34.5 mm
Dimension (H2) - 24 mm
Dimension (G) - M8
Dimension (b) - 10 mm
Weight - 2.2 kg
Recommended Pairings - LM 120
Description of Prefix:
T4 RCL - Carriages with black anodised aluminium body with four floating guide rollers type RAL with “gothic arch” profile for LM rails of U-Line system
Other salient points to be noted:
• Dimensions valid also for T4 RAL and T4 RYL

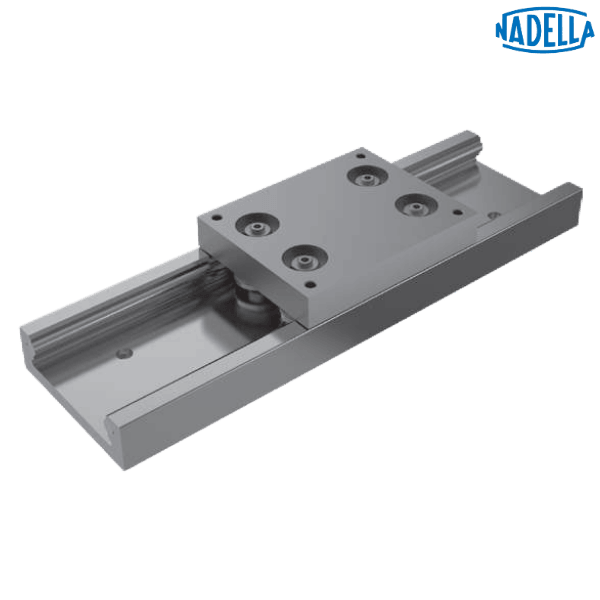

♦ ♦ Images are for representation purposes only
Item Number - T4 RCL 35 10 220 NADELLA
Category - Carriages with Anodised Aluminium Body with Four Guide Rollers with “Gothic Arch” Profile
Principal Dimensions & Load Ratings (Metric):
Dimension (L) - 220 mm
Dimension (B) - 120 mm
Dimension (Ix) - 169 mm
Dimension (Iy) - 50.7 mm
Dimension (H) - 58.5 mm
Dimension (H1) - 34.5 mm
Dimension (H2) - 24 mm
Dimension (G) - M8
Dimension (b) - 10 mm
Weight - 2.2 kg
Recommended Pairings - LM 120
Description of Prefix:
T4 RCL - Carriages with black anodised aluminium body with four floating guide rollers type RAL with “gothic arch” profile for LM rails of U-Line system
Other salient points to be noted:
• Dimensions valid also for T4 RAL and T4 RYL
♦ ♦ Images are for representation purposes only
