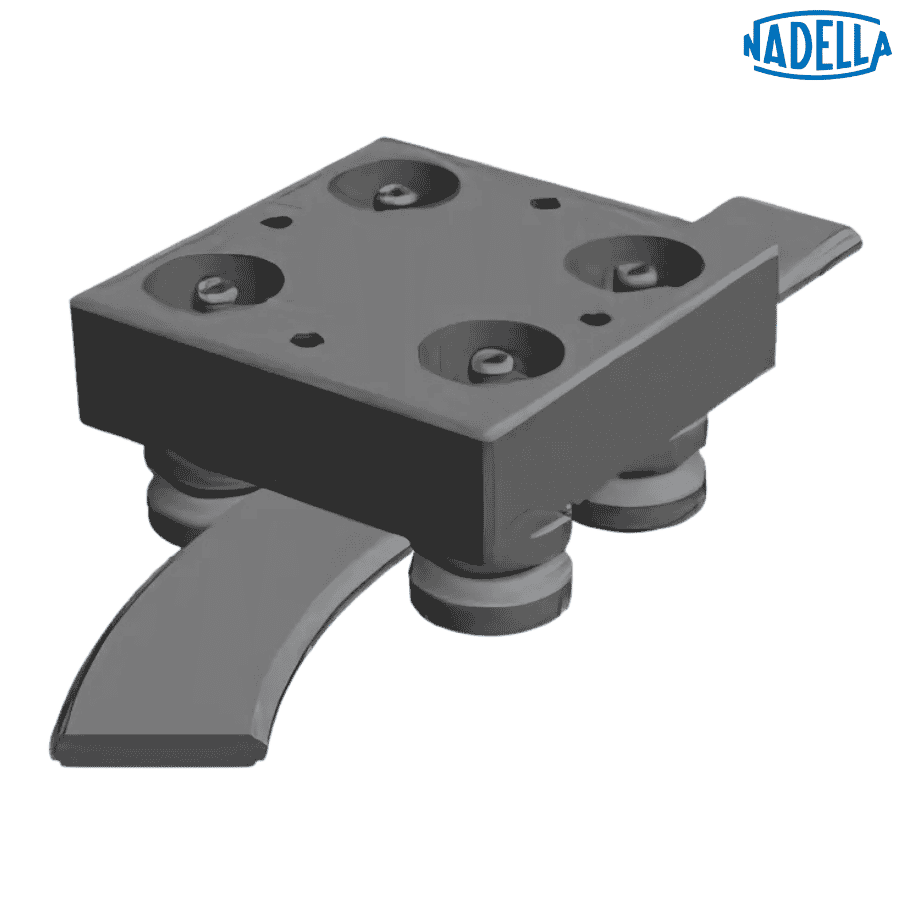

T4R 125 FR 22 EU NADELLA

Brand - NADELLA
Item Number - T4R 125 FR 22 EU NADELLA
Category - Carriages with Fixed Guide Rollers

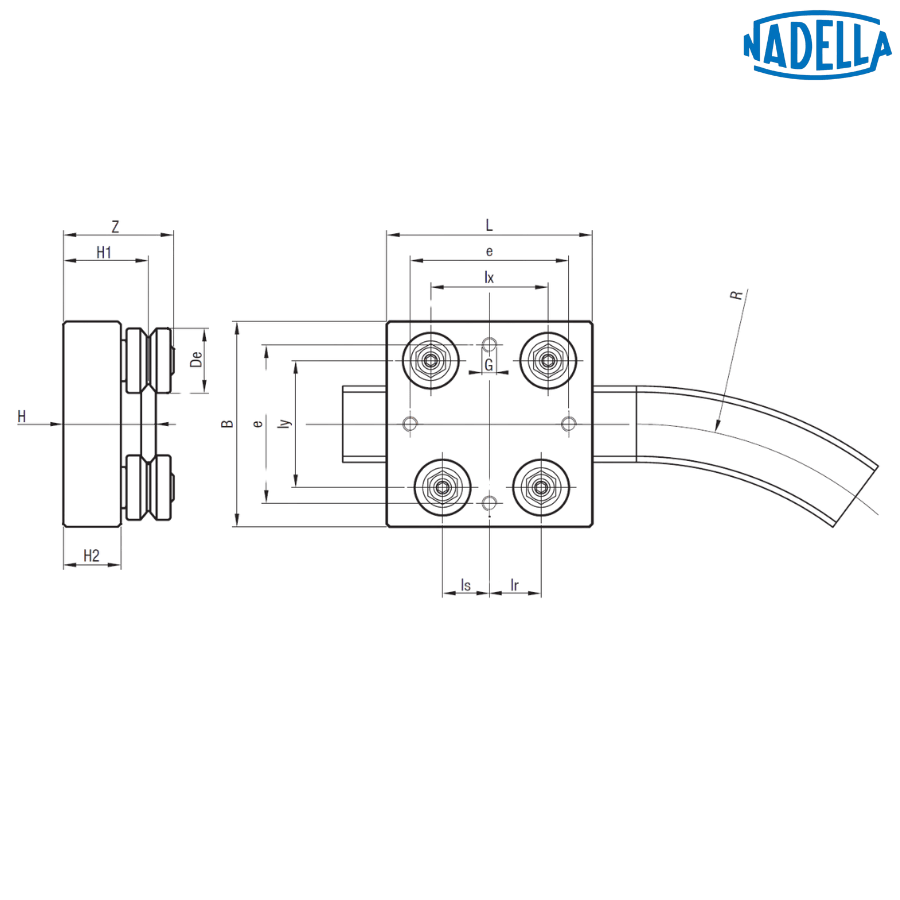

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 22 mm
Dimension (R) - 125 mm
Dimension (L) - 70 mm
Dimension (B) - 70 mm
Dimension (e) - 54 mm
Dimension (G) - M5
Dimension (Ix) - 40 mm
Dimension (Is) - 16.3 mm
Dimension (Ir) - 17.3 mm
Dimension (Iy) - 43.3 mm
Dimension (H) - 31.5 mm
Dimension (H1) - 29 mm
Dimension (H2) - 19.6 mm
Dimension (Z) - 38 mm
Weight - 0.4 kg
Suggested Combinations - FSR ... 22 M 125

Other salient points to be noted:
• Available with stainless steel guide rollers (NX)
• Carriages are complete with guide rollers

♦ ♦ Images are for representation purposes only
