T4R 225 FR 40 EU NADELLA

Brand - NADELLA
Item Number - T4R 225 FR 40 EU NADELLA
Category - Carriages with Fixed Guide Rollers

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 40 mm
Dimension (R) - 225 mm
Dimension (L) - 120 mm
Dimension (B) - 120 mm
Dimension (e) - 100 mm
Dimension (G) - M8
Dimension (Ix) - 75 mm
Dimension (Is) - 30.5 mm
Dimension (Ir) - 32.5 mm
Dimension (Iy) - 77 mm
Dimension (H) - 49 mm
Dimension (H1) - 45 mm
Dimension (H2) - 29.5 mm
Dimension (Z) - 60 mm
Weight - 1.9 kg
Suggested Combinations - FSR ... 35 M 225

Other salient points to be noted:
• Available with stainless steel guide rollers (NX)
• Carriages are complete with guide rollers

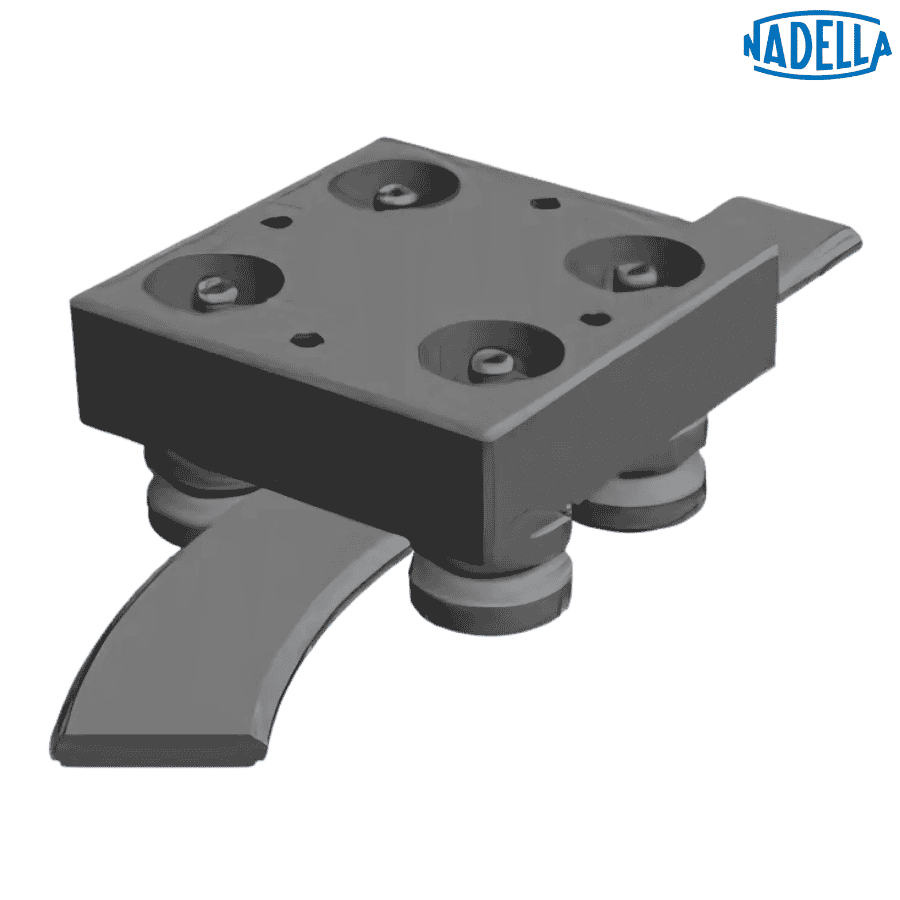

♦ ♦ Images are for representation purposes only
