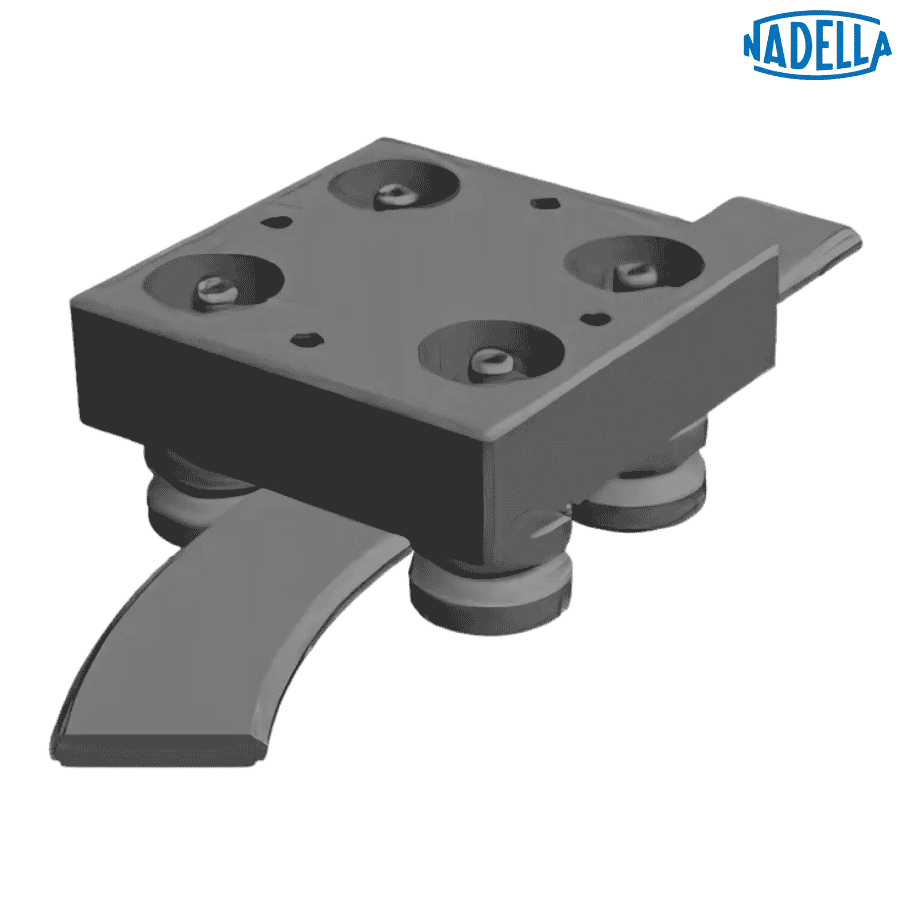

T4R 300 FR 32 EU NADELLA

Brand - NADELLA
Item Number - T4R 300 FR 32 EU NADELLA
Category - Carriages with Fixed Guide Rollers

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 32 mm
Dimension (R) - 300 mm
Dimension (L) - 110 mm
Dimension (B) - 110 mm
Dimension (e) - 90 mm
Dimension (G) - M8
Dimension (Ix) - 70 mm
Dimension (Is) - 30 mm
Dimension (Ir) - 32 mm
Dimension (Iy) - 71.5 mm
Dimension (H) - 44 mm
Dimension (H1) - 40 mm
Dimension (H2) - 27.4 mm
Dimension (Z) - 51 mm
Weight - 1.22 kg
Suggested Combinations - FSR ... 35 M 300

Other salient points to be noted:
• Available with stainless steel guide rollers (NX)
• Carriages are complete with guide rollers

♦ ♦ Images are for representation purposes only
