T4R 35 FR 32 EU NADELLA

Brand - NADELLA
Item Number - T4R 35 FR 32 EU NADELLA

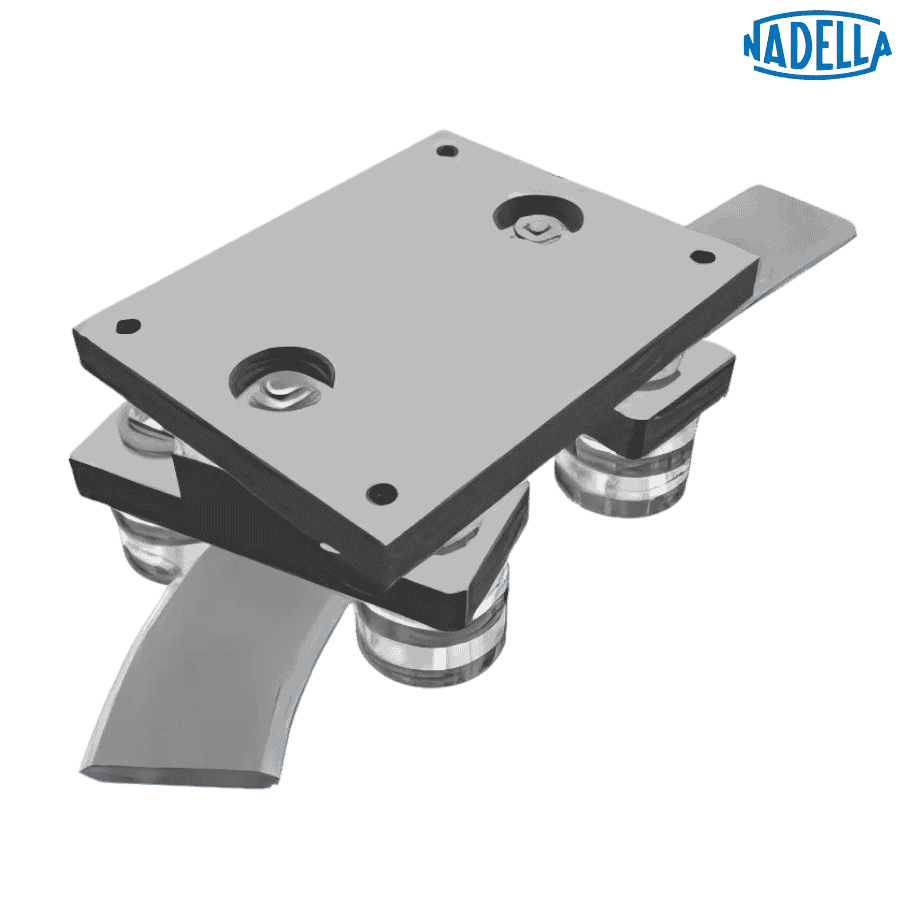

Category - Multi-Motion-Line Steering Carriage for FSR...M Circular Rails

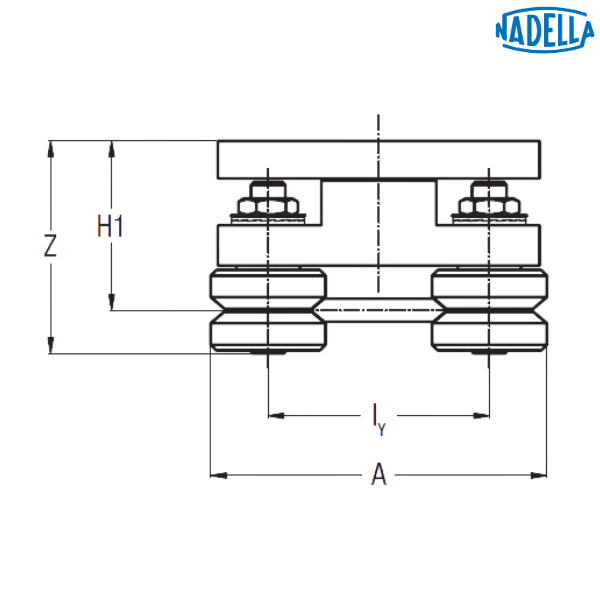

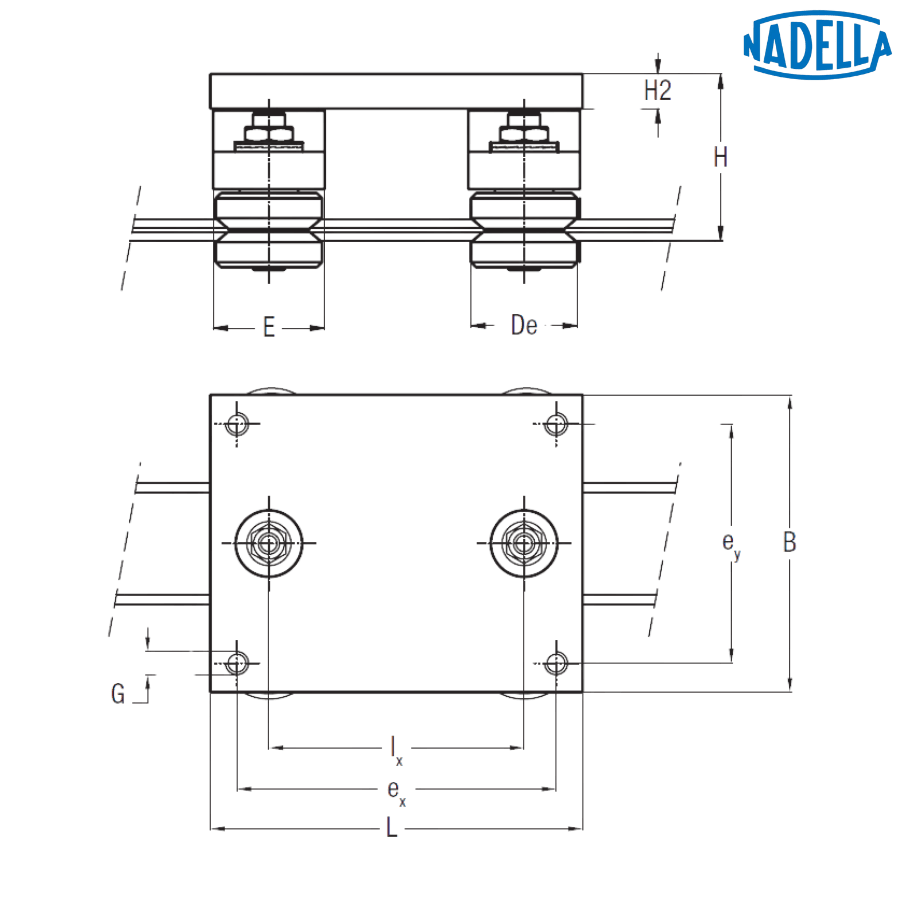

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 32 mm
Dimension (L) - 140 mm
Dimension (B) - 112 mm
Dimension (ex) - 120 mm
Dimension (ey) - 90 mm
Dimension (Ix) - 96 mm
Dimension (Iy) - 71.5 mm
Dimension (H) - 59.9 mm
Dimension (H1) - 55.9 mm
Dimension (H2) - 13 mm
Dimension (G) - M8
Dimension (A) - 103.5 mm
Dimension (E) - 42 mm
Dimension (Z) - 66.2 mm
Weight - 1.1 kg
Suggested Combinations - FSR 35 M, FS 35 M

♦ ♦ Images are for representation purposes only
