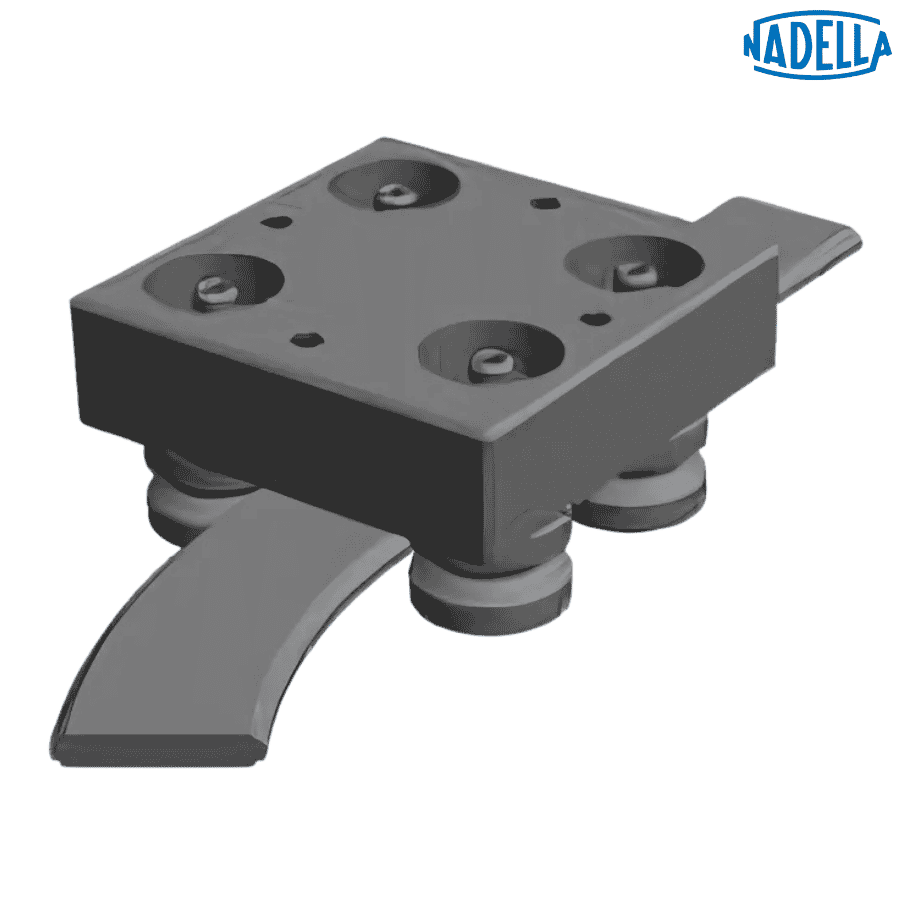

T4R 400 FR 40 EU NADELLA

Brand - NADELLA
Item Number - T4R 400 FR 40 EU NADELLA
Category - Carriages with Fixed Guide Rollers

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 40 mm
Dimension (R) - 400 mm
Dimension (L) - 150 mm
Dimension (B) - 150 mm
Dimension (e) - 126 mm
Dimension (G) - M10
Dimension (Ix) - 104 mm
Dimension (Is) - 44.4 mm
Dimension (Ir) - 46.4 mm
Dimension (Iy) - 107.8 mm
Dimension (H) - 50 mm
Dimension (H1) - 45 mm
Dimension (H2) - 29.5 mm
Dimension (Z) - 60 mm
Weight - 2.5 kg
Suggested Combinations - FSR ... 47 M 400

Other salient points to be noted:
• Available with stainless steel guide rollers (NX)
• Carriages are complete with guide rollers

♦ ♦ Images are for representation purposes only
