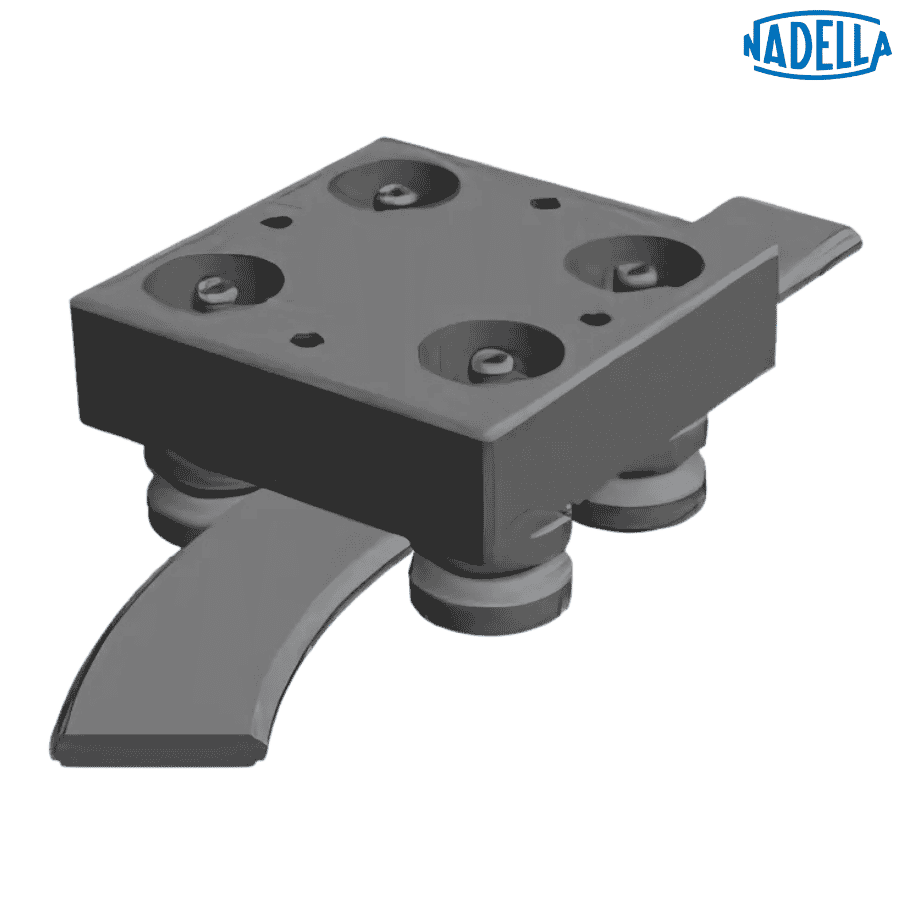

T4R 400 FR 52 EU NADELLA

Brand - NADELLA
Item Number - T4R 400 FR 52 EU NADELLA
Category - Carriages with Fixed Guide Rollers

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 52 mm
Dimension (R) - 400 mm
Dimension (L) - 180 mm
Dimension (B) - 180 mm
Dimension (e) - 156 mm
Dimension (G) - M10
Dimension (Ix) - 110 mm
Dimension (Is) - 46 mm
Dimension (Ir) - 49 mm
Dimension (Iy) - 116.8 mm
Dimension (H) - 59 mm
Dimension (H1) - 54 mm
Dimension (H2) - 34.2 mm
Dimension (Z) - 71 mm
Weight - 4.7 kg
Suggested Combinations - FSR ... 47 M 400

Other salient points to be noted:
• Available with stainless steel guide rollers (NX)
• Carriages are complete with guide rollers

♦ ♦ Images are for representation purposes only
