T4R 47 FR 52 EU NADELLA

Brand - NADELLA
Item Number - T4R 47 FR 52 EU NADELLA
Category - Multi-Motion-Line Steering Carriage for FSR...M Circular Rails

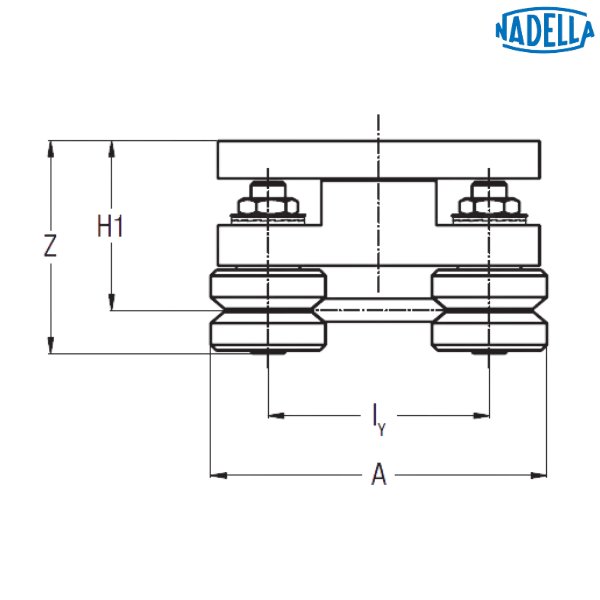

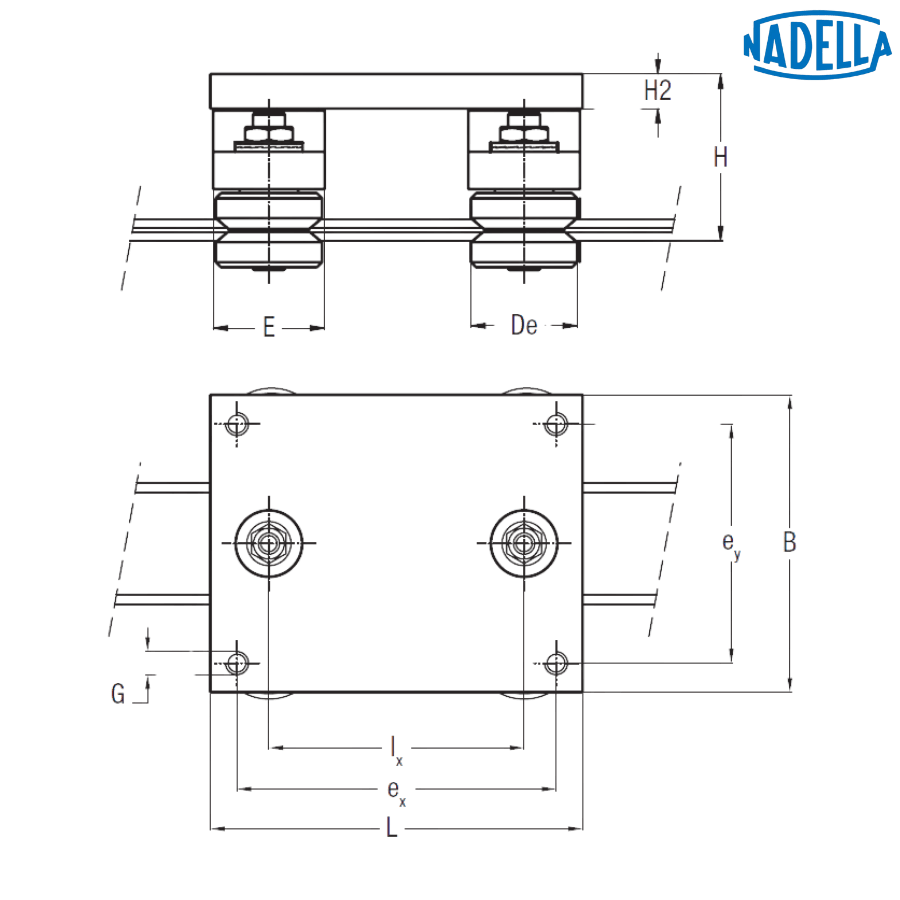

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 52 mm
Dimension (L) - 180 mm
Dimension (B) - 160 mm
Dimension (ex) - 150 mm
Dimension (ey) - 130 mm
Dimension (Ix) - 120 mm
Dimension (Iy) - 116.8 mm
Dimension (H) - 78.6 mm
Dimension (H1) - 73.6 mm
Dimension (H2) - 19 mm
Dimension (G) - M10
Dimension (A) - 168.8 mm
Dimension (E) - 56 mm
Dimension (Z) - 90.3 mm
Weight - 3.3 kg
Suggested Combinations - FSR 47 M, FS 47 M

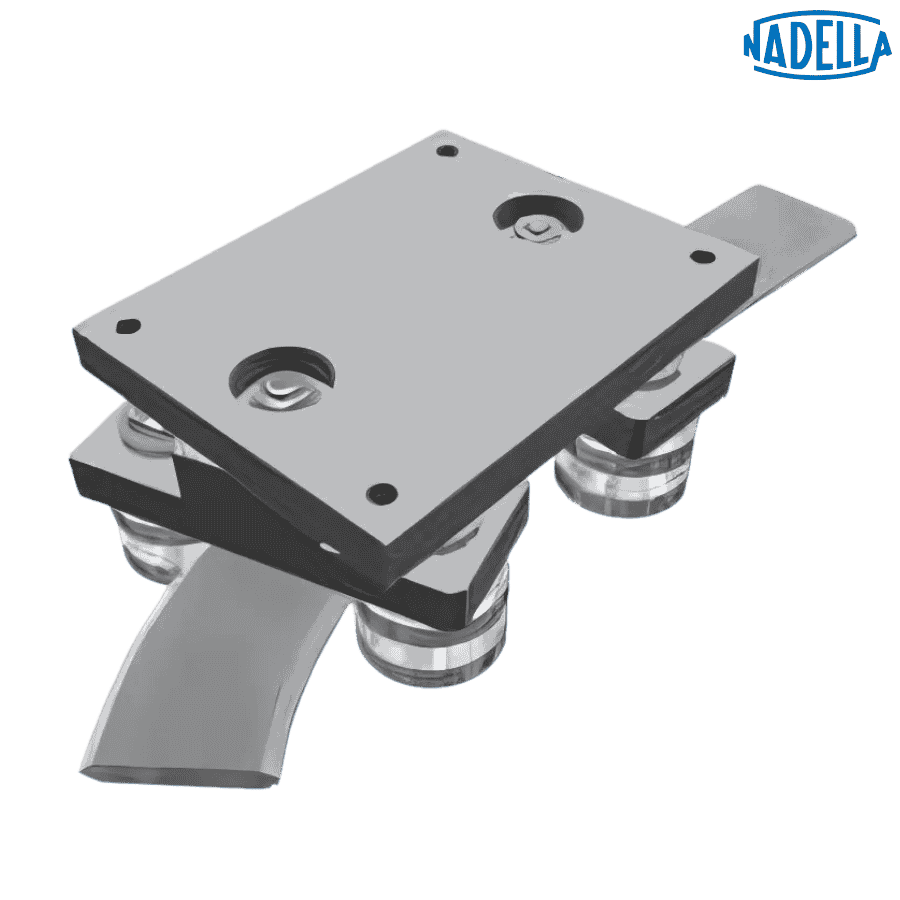

♦ ♦ Images are for representation purposes only
