T8010F TIMKEN

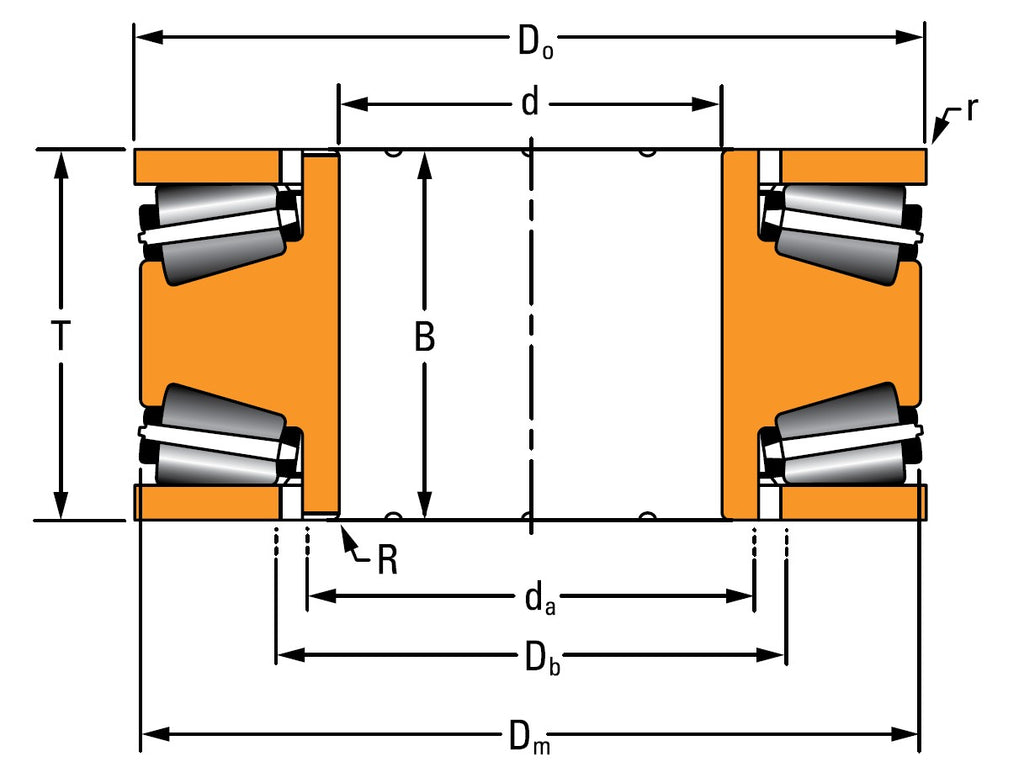

Dimension Denotation of Diagram :

d  –  Inner Diameter

D0  –  Outer Diameter

Dm –  Shaft Washer Outside Diameter

Db –  Housing Abutment Diameter

T  –  Height

B  –  Inner Ring Width

R  –  Maximum Shaft Chamfer Diameter

r  –  Maximum Housing Chamfer Diameter
rk –  Keyway / Locating Slot Length

f  –  Keyway / Locating Slot Width

b  –  Keyway / Locating Slot Depth

Other salient points to be noted:

Designed for ultimate durability in heavy-industrial environments, the Timken Type TTDW is a double-acting thrust tapered roller bearing engineered to handle extreme forces. It is used extensively on work roll axial positions within metals rolling mill applications where axial loads are exceptionally high. This specific design features a tapered inner race paired with flat outer races to provide reliable, heavy-duty performance.

• Bearing Construction: Double-acting thrust tapered roller bearing.

• Race Configuration: Features two single flat outer races and one double tapered inner race.

• Enhanced Inner Race: The double tapered inner race is designed with extended ribs for improved stability and load handling.

• Lubrication Optimized: Equipped with built-in oil slots on the double race faces for efficient lubrication.

• Ideal Application: Metals rolling mills and applications requiring superior axial load management.
