| Outer Diameter | 422.275 mm |
| Height | 120.65 mm |
| Feature Diameter | 342.9 mm |
| Bearing Weight | 104.0 kg |
| Basic Static Load Rating, Axial | 15080000.0 N |
| Outer Diameter Of Shaft Washer | 419.1 mm |
| Spherical Radius | 508.0 mm |
| Maximum Housing Chamfer Diameter | 19.4 mm |
Description

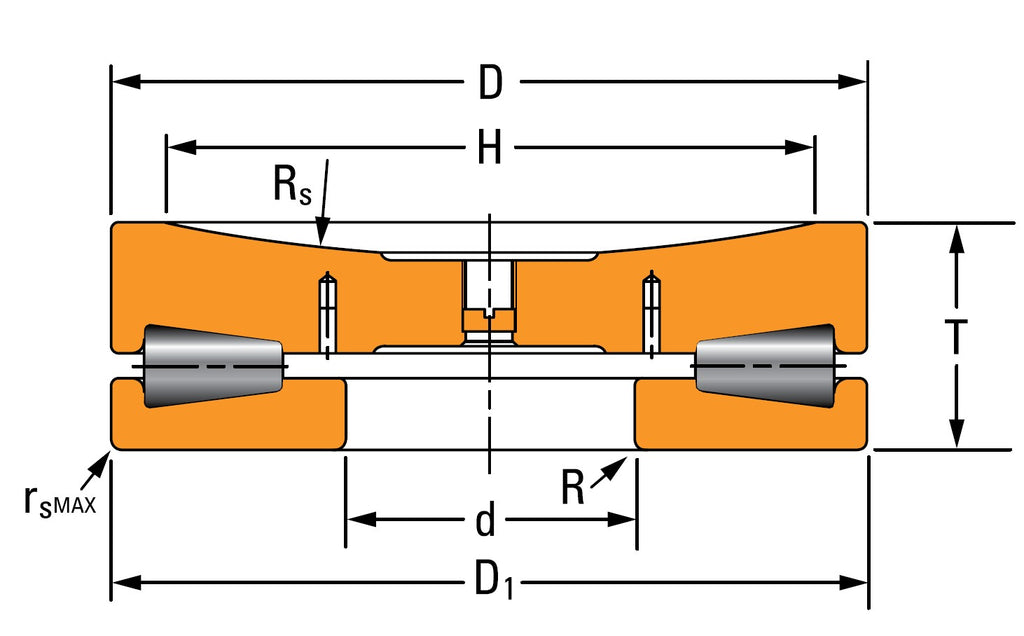

Dimension Denotation of Diagram :
d – Inner Diameter
D – Outer Diameter
D1 – Outer Diameter Of Shaft Washer
T – Height
H – Feature Diameter
Rs – Spherical Radius
R – Maximum Shaft Chamfer Diameter
rs max – Maximum Housing Chamfer Diameter
Other salient points to be noted:
The Timken TTHDSV-1 thrust tapered roller bearing provides exceptional durability for rolling mill screw-down systems. Combining an axial bore lower race with a concave upper race, this bearing ensures precise fit and immense thrust load capacity for the metals industry.
-
Industry Specific: Tailored for the heavy demands of rolling mill screw-down systems.
-
High Load Capacity: Full complement (cageless) design for uncompromised strength.
-
Axial Bore Design: Features one lower tapered race with an axial bore.
-
Unique Profile: Includes one upper tapered race engineered with a special concave profile.
** Images are for representation purposes only
