| Inner Diameter | 234.95 mm |
| Outer Diameter | 546.1 mm |
| Height | 168.275 mm |
| Feature Diameter | 457.2 mm |
| Bearing Weight | 222.2 kg |
| Basic Static Load Rating, Axial | 29980000.0 N |
| Outer Diameter Of Shaft Washer | 546.1 mm |
| Spherical Radius | 641.4 mm |
| Maximum Housing Chamfer Diameter | 32.0 mm |
Description

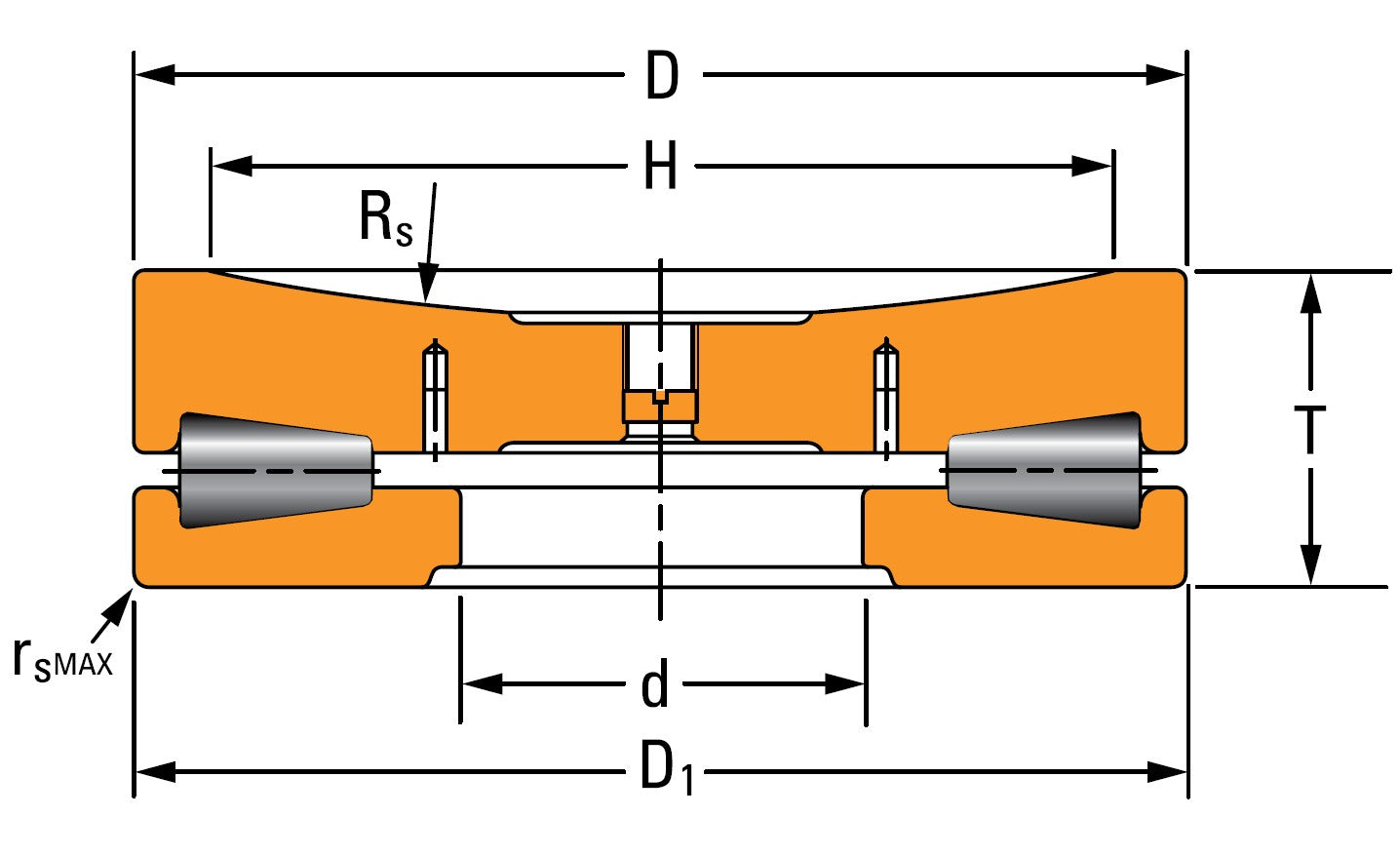

Dimension Denotation of Diagram :
d – Inner Diameter
D – Outer Diameter
D1 – Outer Diameter Of Shaft Washer
T – Height
H – Feature Diameter
Rs – Spherical Radius
R – Maximum Shaft Chamfer Diameter
rs max – Maximum Housing Chamfer Diameter
Other salient points to be noted:
Engineered for the most demanding metal rolling applications, the Timken TTHDSV-2 is a premium thrust tapered roller bearing. Its intricate lower race design, featuring both an axial bore and recess diameter, pairs with a concave upper race to deliver peak performance in screw-down systems.
-
Industry Specific: Designed specifically for rolling mill screw-down systems.
-
High Load Capacity: Full complement (cageless) construction maximizes bearing load thresholds.
-
Complex Lower Race: Features one lower tapered race equipped with an axial bore and a recess diameter.
-
Unique Profile: Includes one upper tapered race with a special concave profile.
** Images are for representation purposes only
