TJ 6849 RBC

Brand - RBC
Item Number - TJ 6849 RBC *
Category - Heavy Duty Tandem Roller Bearing Single Row

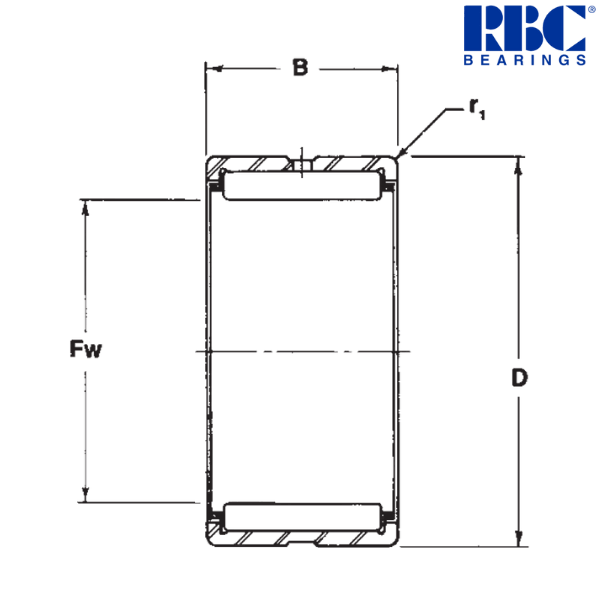

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (Fw) - 5 inch
Minimum Inside Diameter (Fw) - 5.0013 inch
Maximum Inside Diameter (Fw) - 5.0027 inch
Maximum Outside Diameter (D) - 6.5 inch
Minimum Outside Diameter (D) - 6.499 inch
Width (B) - 2.25 (+0.000 to -0.005) inch
Maximum Housing Fillet (r1) - 0.1 inch
Housing Shoulder Diameter - 5.75 (+/- 0.015625)
Dynamic Capacity (C) - 54000 lbf
Static Capacity (Co) - 137000 lbf
Limiting Speed - 2400 rpm
Maximum Recommended Shaft Diameter (ISO h6, use with H7 hsg fit) - 5 inch
Minimum Recommended Shaft Diameter (ISO h6, use with H7 hsg fit) - 4.999 inch
Maximum Recommended Shaft Diameter (ISO f6, use with N7 hsg fit) - 4.9983 inch
Minimum Recommended Shaft Diameter (ISO f6, use with N7 hsg fit) - 4.9973 inch
Minimum Recommended Housing Bore (Slip Fit ISO H7) - 6.5 inch
Maxmum Recommended Housing Bore (Slip Fit ISO H7) - 6.5016 inch
Mean Fit for Recommended Housing Bore (Slip Fit ISO H7) - .0013L inch
Minimum Recommended Housing Bore (Press Fit ISO N7) - 6.498 inch
Maximum Recommended Housing Bore (Press Fit ISO N7) - 6.4995 inch
Mean Fit for Recommended Housing Bore (Press Fit ISO N7) - .0008T inch

Description of Prefix :
TJ - Single Row Bearing

Other salient points to be noted :
* Location and number of lubricating holes may differ

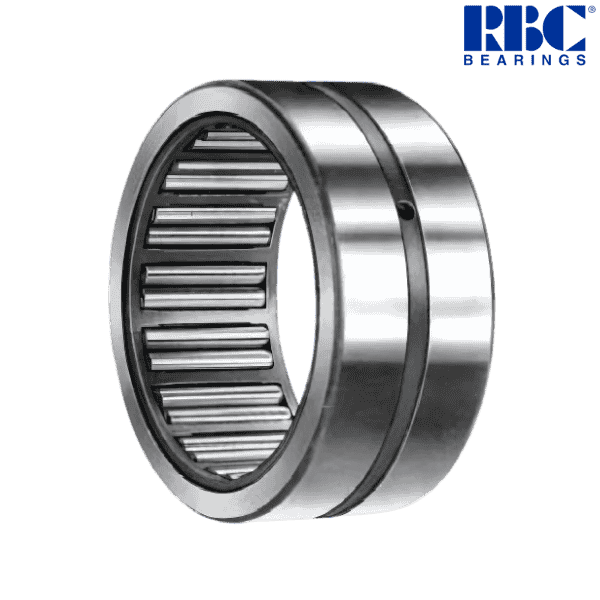

♦ ♦ Images are for representation purposes only
