Description
Brand - BECO
Item Number - UC 207 BHTS ZZ 350° Beco Plus
Category - Insert Bearing for Extreme Temperature
Bore Diameter (B) mm - 35
Outer Diameter (D) mm - 72
Dimension (A) mm - 18 ± 2
Dimension (A1) mm - 17.5
Dimension (A2) mm - 25.4
N - M8x1.00
Weight (kg) - 0.5
Limiting Speed (RPM) - 200
Static Load at 350°C (kN) - 10.4
Static Load at 20°C (kN) - 15.1

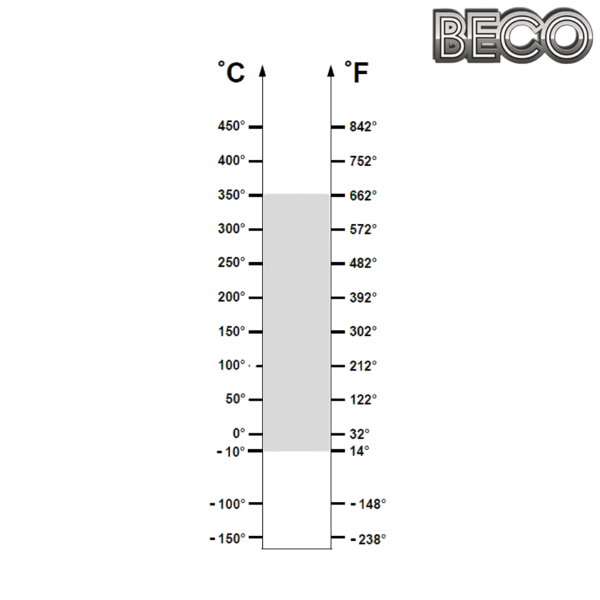

Operating Range - ‒10° / 350°C
Economic Operating Range - 250° / 350°C
---------------------------------------------------------
Bearing + Housing = Bearing Unit
---------------------------------------------------------
UC 207 BHTS ZZ 350° Beco Plus + PA 207 SS = UCPA 207 BHTS ZZ 350° Beco Plus
UC 207 BHTS ZZ 350° Beco Plus + F 207 SS = UCF 207 BHTS ZZ 350° Beco Plus
UC 207 BHTS ZZ 350° Beco Plus + FL 207 SS = UCFL 207 BHTS ZZ 350° Beco Plus
UC 207 BHTS ZZ 350° Beco Plus + P 207 SS = UCP 207 BHTS ZZ 350° Beco Plus
UC 207 BHTS ZZ 350° Beco Plus + T 207 SS = UCT 207 BHTS ZZ 350° Beco Plus
NOTE:
- Operating Range is the correct technical range in which can be used the bearing with good operating result
- Economic Operating Range is the range of temperature in which you can find, according to our study experience and know-how, the better relation price-quality-lifetime.
