UC 208 BSS 2RS NSF H1 BECO

Brand - BECO
Item Number - UC 208 BSS 2RS NSF H1 BECO
Category - Insert Bearing in Stainless Steel
Bore Diameter (B) mm - 40
Outer Diameter (D) mm - 80
Dimension (A) mm - 19 ± 2
Dimension (A1) mm - 19.0
Dimension (A2) mm - 30.2
N - M8x1.00
Weight (kg) - 0.574
Limiting Speed (RPM) - 680
Static Load at 100°C (kN) - 16.3
Static Load at 20°C (kN) - 16.3

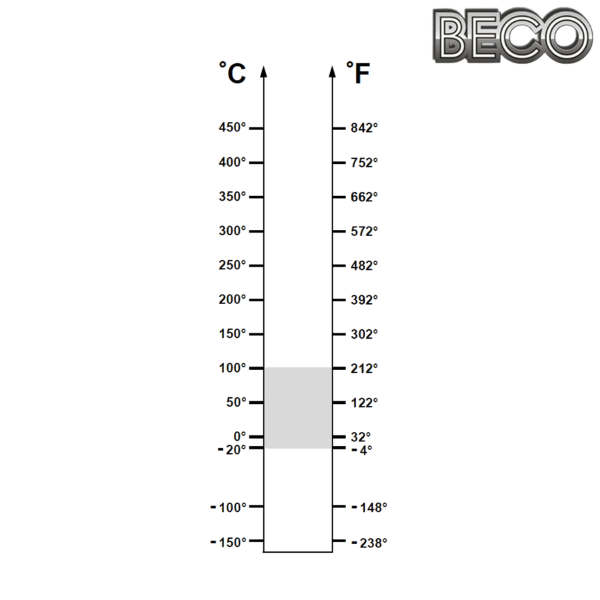

Operating Range - ‒20° / 100°C
Economic Operating Range - ‒20° / 100°C

--------------------------------------------------------------------------------------------------------------
Bearing + Housing = Bearing Unit
--------------------------------------------------------------------------------------------------------------
UC 208 BSS 2RS NSF H1 + PA 208 SS = UCPA 208 BSS 2RS NSF H1
UC 208 BSS 2RS NSF H1 + F 208 SS = UCF 208 BSS 2RS NSF H1
UC 208 BSS 2RS NSF H1 + FL 208 SS = UCFL 208 BSS 2RS NSF H1
UC 208 BSS 2RS NSF H1 + P 208 SS = UCP 208 BSS 2RS NSF H1
UC 208 BSS 2RS NSF H1 + PLASTIC HOUSING F PL 208 = UCF PL 208 BSS 2RS NSF H1
UC 208 BSS 2RS NSF H1 + PLASTIC HOUSING FL PL 208 = UCFL PL 208 BSS 2RS NSF H1
UC 208 BSS 2RS NSF H1 + PLASTIC HOUSING P PL 208 = UCP PL 208 BSS 2RS NSF H1

NOTE:
- Operating Range is the correct technical range in which can be used the bearing with good operating result
- Economic Operating Range is the range of temperature in which you can find, according to our study experience and know-how, the better relation price-quality-lifetime.

** Images are for representation purposes only
