UC 209 BSS 2RS NSF H1 BECO

Brand - BECO
Item Number - UC 209 BSS 2RS NSF H1 BECO
Category - Insert Bearing in Stainless Steel
Bore Diameter (B) mm - 45
Outer Diameter (D) mm - 85
Dimension (A) mm - 20 ± 2
Dimension (A1) mm - 19.0
Dimension (A2) mm - 30.2
N - M8x1.00
Weight (kg) - 0.644
Limiting Speed (RPM) - 640
Static Load at 100°C (kN) - 18.5
Static Load at 20°C (kN) - 18.5

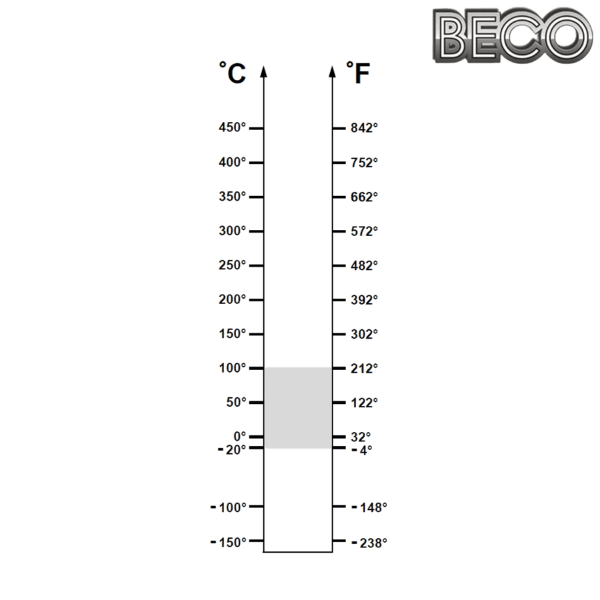

Operating Range - ‒20° / 100°C
Economic Operating Range - ‒20° / 100°C

--------------------------------------------------------------------------------------------------------------
Bearing + Housing = Bearing Unit
--------------------------------------------------------------------------------------------------------------
UC 209 BSS 2RS NSF H1 + PA 209 SS = UCPA 209 BSS 2RS NSF H1
UC 209 BSS 2RS NSF H1 + F 209 SS = UCF 209 BSS 2RS NSF H1
UC 209 BSS 2RS NSF H1 + FL 209 SS = UCFL 209 BSS 2RS NSF H1
UC 209 BSS 2RS NSF H1 + P 209 SS = UCP 209 BSS 2RS NSF H1
UC 209 BSS 2RS NSF H1 + PLASTIC HOUSING F PL 209 = UCF PL 209 BSS 2RS NSF H1
UC 209 BSS 2RS NSF H1 + PLASTIC HOUSING FL PL 209 = UCFL PL 209 BSS 2RS NSF H1
UC 209 BSS 2RS NSF H1 + PLASTIC HOUSING P PL 209 = UCP PL 209 BSS 2RS NSF H1

NOTE:
- Operating Range is the correct technical range in which can be used the bearing with good operating result
- Economic Operating Range is the range of temperature in which you can find, according to our study experience and know-how, the better relation price-quality-lifetime.

** Images are for representation purposes only
