UC 212 BSS 2RS NSF H1 BECO

Brand - BECO
Item Number - UC 212 BSS 2RS NSF H1 BECO
Category - Insert Bearing in Stainless Steel
Bore Diameter (B) mm - 60
Outer Diameter (D) mm - 110
Dimension (A) mm - 24 ± 3
Dimension (A1) mm - 25.4
Dimension (A2) mm - 39.7
N - M10x1.25
Weight (kg) - 1.364
Limiting Speed (RPM) - 480
Static Load at 100°C (kN) - 29.3
Static Load at 20°C (kN) - 29.3

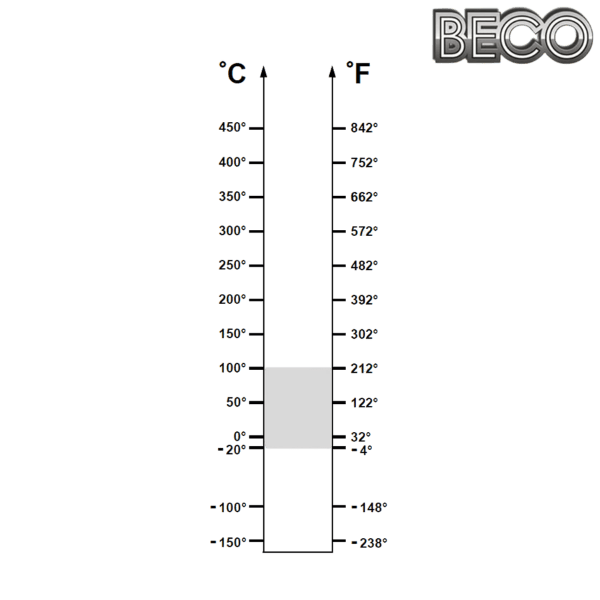

Operating Range - ‒20° / 100°C
Economic Operating Range - ‒20° / 100°C

--------------------------------------------------------------------------------------------------------------
Bearing + Housing = Bearing Unit
--------------------------------------------------------------------------------------------------------------
UC 212 BSS 2RS NSF H1 + F 212 SS = UCF 212 BSS 2RS NSF H1
UC 212 BSS 2RS NSF H1 + FL 212 SS = UCFL 212 BSS 2RS NSF H1
UC 212 BSS 2RS NSF H1 + P 212 SS = UCP 212 BSS 2RS NSF H1
UC 212 BSS 2RS NSF H1 + PLASTIC HOUSING F PL 212 = UCF PL 212 BSS 2RS NSF H1
UC 212 BSS 2RS NSF H1 + PLASTIC HOUSING FL PL 212 = UCFL PL 212 BSS 2RS NSF H1
UC 212 BSS 2RS NSF H1 + PLASTIC HOUSING P PL 212 = UCP PL 212 BSS 2RS NSF H1

NOTE:
- Operating Range is the correct technical range in which can be used the bearing with good operating result
- Economic Operating Range is the range of temperature in which you can find, according to our study experience and know-how, the better relation price-quality-lifetime.

** Images are for representation purposes only
