UC 213 BSS 2RS NSF H1 BECO


Country Of Origin: ITALY
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - BECO
Item Number - UC 213 BSS 2RS NSF H1 BECO
Category - Insert Bearing in Stainless Steel
Bore Diameter (B) mm - 65
Outer Diameter (D) mm - 120
Dimension (A) mm - 27 ± 5
Dimension (A1) mm - 25.4
Dimension (A2) mm - 39.7
N - M10x1.25
Weight (kg) - 1.644
Limiting Speed (RPM) - 424
Static Load at 100°C (kN) - 35.8
Static Load at 20°C (kN) - 35.8

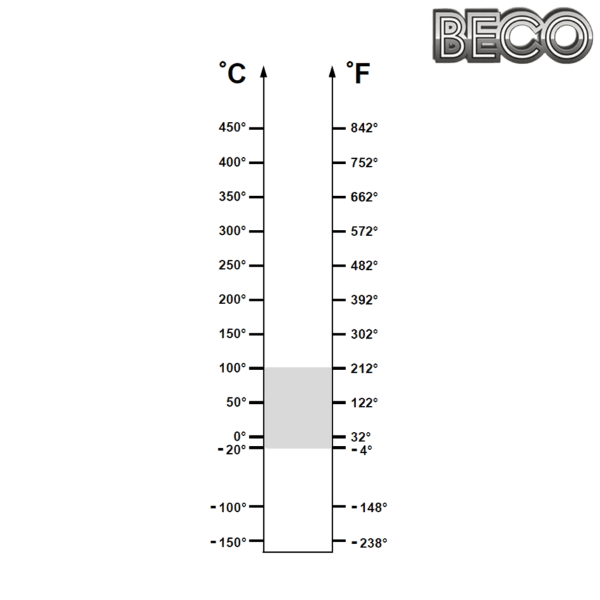

Operating Range - ‒20° / 100°C
Economic Operating Range - ‒20° / 100°C

---------------------------------------------------------
Bearing + Housing = Bearing Unit
---------------------------------------------------------
UC 213 BSS 2RS NSF H1 + F 213 SS = UCF 213 BSS 2RS NSF H1
UC 213 BSS 2RS NSF H1 + P 213 SS = UCP 213 BSS 2RS NSF H1

NOTE:
- Operating Range is the correct technical range in which can be used the bearing with good operating result
- Economic Operating Range is the range of temperature in which you can find, according to our study experience and know-how, the better relation price-quality-lifetime.

** Images are for representation purposes only
