| Outer Diameter | 840.0 mm |
| Height | 249.619 mm |
| Bearing Weight | 916.0 kg |
| Basic Static Load Rating, Axial | 91190000.0 N |
| Outer Diameter Of Shaft Washer | 838.0 mm |
| Shaft Washer Height | 44.45 mm |
| Maximum Housing Chamfer Diameter | 6.4 mm |
Description

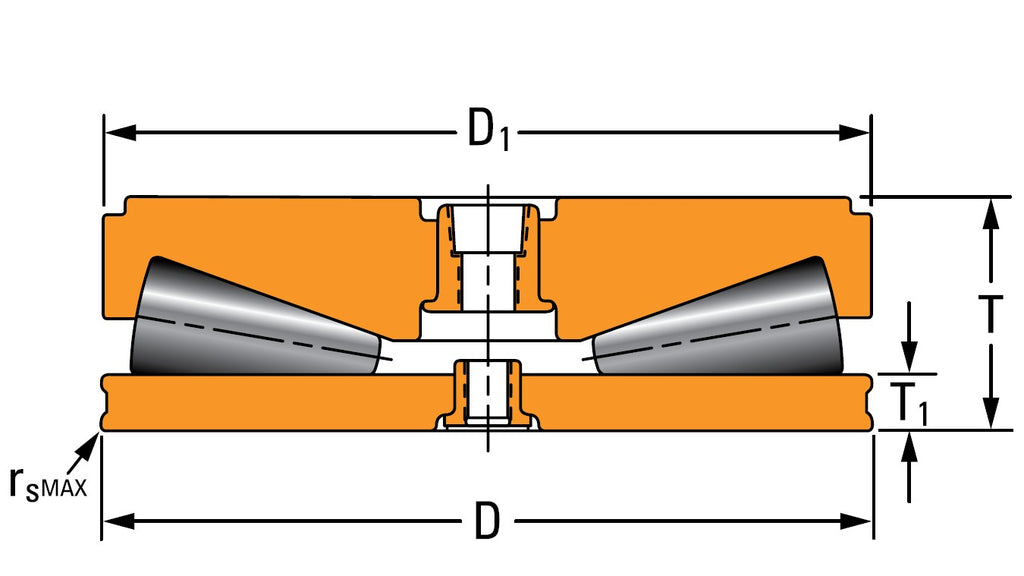

Dimension Denotation of Diagram :
d – Inner Diameter
D – Outer Diameter
D1 – Outer Diameter Of Shaft Washer
T – Height
H – Feature Diameter
Rs – Spherical Radius
R – Maximum Shaft Chamfer Diameter
rs max – Maximum Housing Chamfer Diameter
Other salient points to be noted:

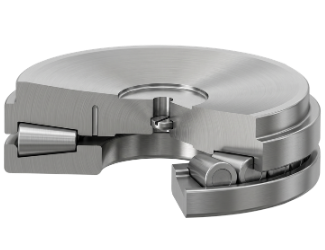

The Timken TTHDDV is a rugged, reliable thrust tapered roller bearing designed for fundamental heavy-duty use in rolling mill screw-down systems. Its straightforward flat and tapered race configuration provides exceptional, no-nonsense thrust load support in demanding metalworking environments.
-
Industry Specific: Built specifically for metals industry rolling mill screw-down systems.
-
High Load Capacity: Full complement (cageless) design ensures maximum durability.
-
Streamlined Design: Features one lower flat race for robust seating.
-
Upper Component: Includes one standard upper tapered race for effective load distribution.
** Images are for representation purposes only
