Description
Brand - FAG
Item Number - VCM7018-E-T-P4S-XL FAG
Category - Spindle Bearing
Weight (m) kg - 1.1
Inner Diameter (d) mm - 90
Outer Diameter (D) mm - 140
Width (B) mm - 24
Minimum Chamfer Dimension (rmin) mm - 1.5
Minimum Chamfer Dimension (r1min) mm - 1
Contact angle (°) - 25

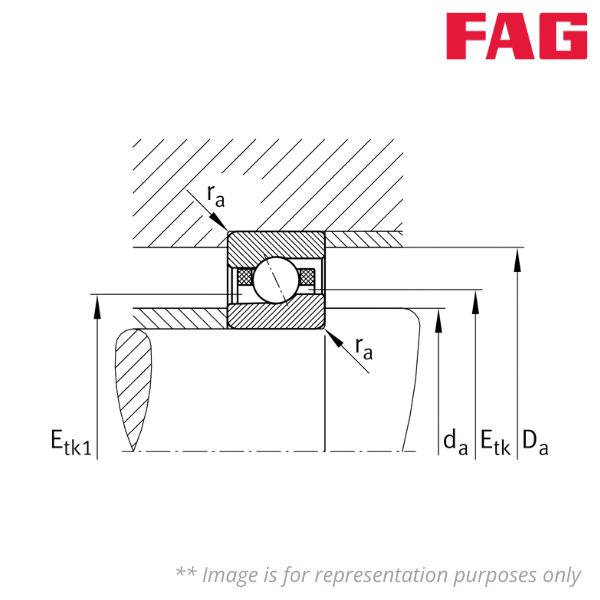

Diameter Shaft Shoulder Clearance - h12
Diameter Shaft Shoulder (da) mm - 100
Shoulder Diameter Outer Ring Clearance - H12
Shoulder Diameter Outer Ring (Da) mm - 131
Minimum Diameter Injection Pitch (Etk) mm - 111.7
Basic Dynamic Load Rating, Radial (Cr) N - 90000
Basic Static Load Rating, Radial (C0r) N - 35000
Limiting Speed for Grease Lubrication (nG grease) min⁻¹ - 17400
Limiting Speed for Oil Lubrication (nG oil) min⁻¹ - 26100
Preload Force Light (FV L) N - 265
Preload Force Medium (FV M) N - 693
Preload Force Heavy (FV H) N - 1443
Lift-off Force Light (KaE L) N - 759
Lift-off Force Medium (KaE M) N - 2012
Lift-off Force Heavy (KaE H) N - 4250
Axial Rigidity Light (Ca L) N/µm - 183
Axial Rigidity Medium (Ca M) N/µm - 258
Axial Rigidity Heavy (Ca H) N/µm - 338
