WS22315-E1-XL-K-2RSR FAG


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - FAG
Item Number - WS22315-E1-XL-K-2RSR FAG
Category - Sealed Spherical Roller Bearing
Weight (m) kg - 6.1
Inner Diameter (d) mm - 75
Outer Diameter (D) mm - 160
Width (B) mm - 64
Minimum Chamfer Dimension (r) mm - 2.1
Outer Ring Bore Diameter (D1) mm - 138.74
Inner Ring Raceway Diameter (d2) mm - 86.46
Lubrication Hole Diameter (ds) mm - 4.8
Lubrication Groove Width (ns) mm - 9.5

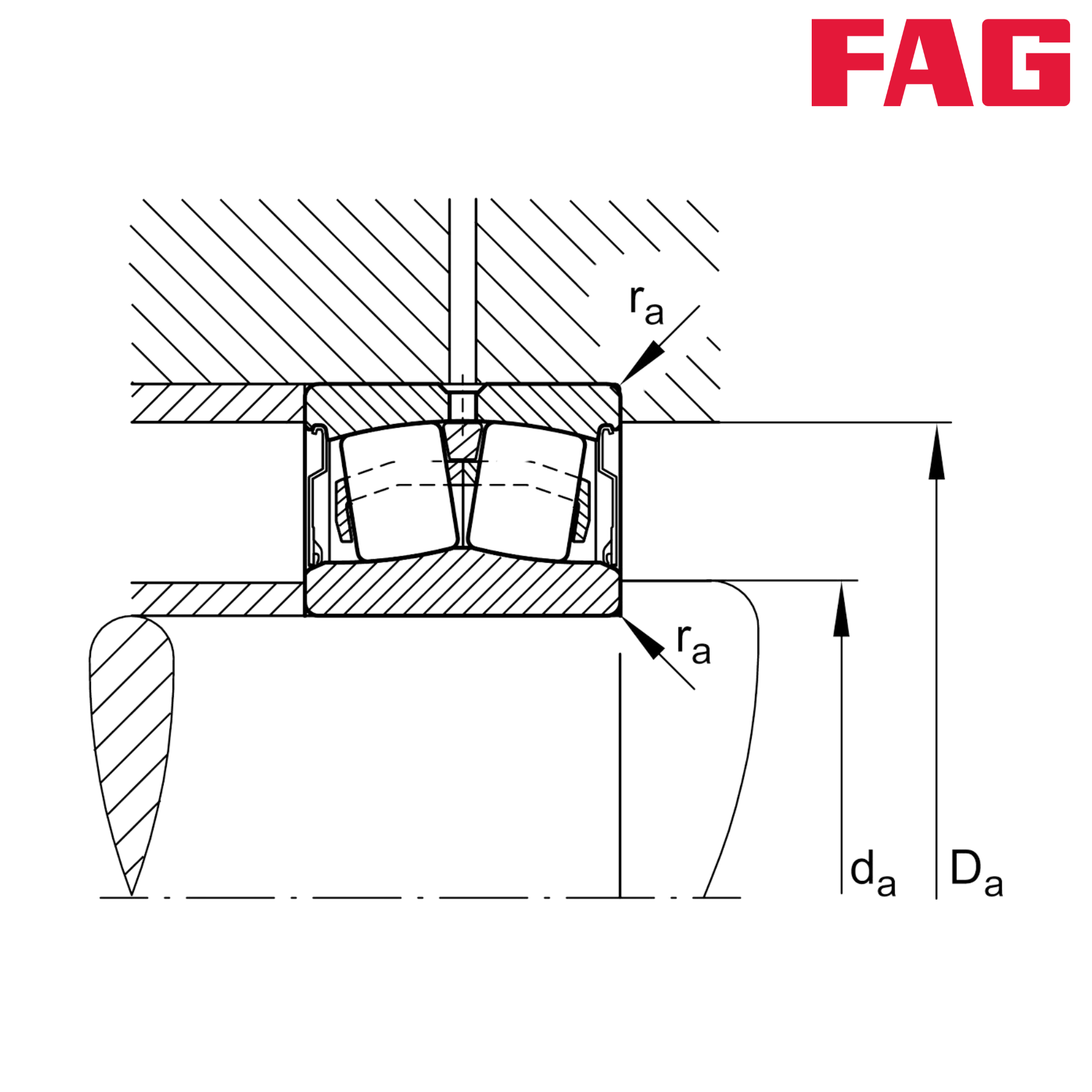

Minimum Abutment Diameter of Shaft Shoulder (da) mm - 86.46
Maximum Housing Connection Diameter (Da) mm - 148
Maximum Undercut Radius (ra) mm - 2.1
Basic dynamic Radial Load Rating (Cr) N - 44500
Basic Static Radial Load Rating (C0r) N - 45000
Calculation Factor (e) - 0.34
Calculation Factor (Y1) - 1.99
Calculation Factor (Y2) - 2.96
Calculation Factor (Y0) - 1.94
Radial Fatigue Load Limit (Cur) N - 40500
Limiting Speed (nG) 1/min - 4500
Adapter Sleeve - H3315-T-WS
Withdrawal Sleeve - AH3315

Suffixes:
E1 - Without Central Rib on Inner Ring
XL - X-Life
K - Tapered Bore (Taper 1:12)
2RSR - Steel-Reinforced Lip Seal on Both Sides Made From Nitrile Rubber (NBR), Grease Filling Level 25% to 40%, Filled with High-Pressure Grease

** Images are for representation purposes only
