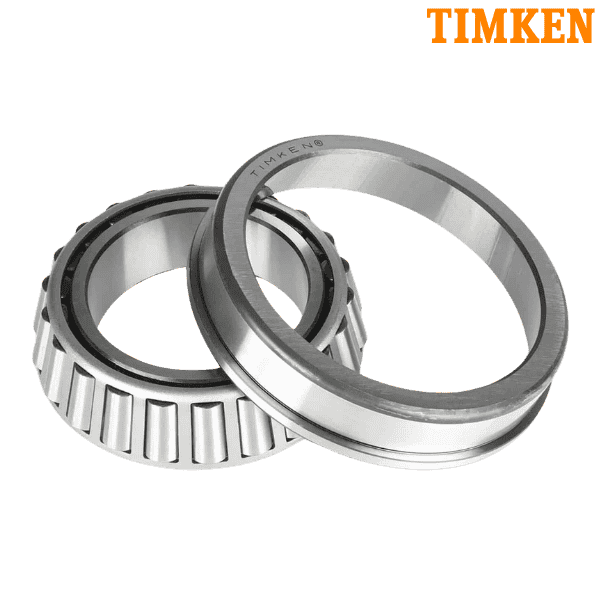

X30308UM/YSA30308RM TIMKEN

Brand - TIMKEN
Item Number - X30308UM/YSA30308RM TIMKEN
Also Known As - X30308UM - YSA30308RM
Category - Single Row Tapered Roller Bearing (TSF Type)

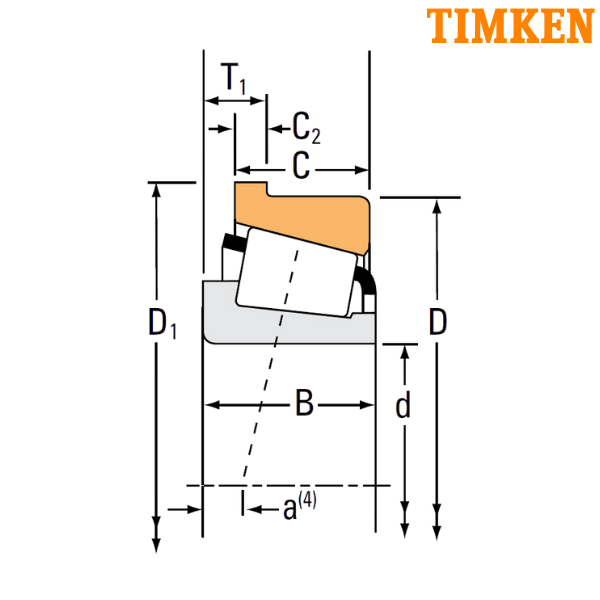

Bore Diameter (d) mm - 40
Bore Diameter (d) inch - 1.5748
Outer Diameter (D) mm - 90
Outer Diameter (D) inch - 3.5433
Width (T1) mm - 10.25
Width (T1) inch - 0.4035
Dynamic Load Rating (C1) N - 103000
Dynamic Load Rating (C1) lbf - 23200
Factor (e) - 0.35
Factor (Y) - 1.74
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 26800
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 6020
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 15800
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 3550
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.69
Basic Static Radial Load Rating (C0) N - 109000
Basic Static Radial Load Rating (C0) lbf - 24600
Cone Width (B) mm - 23
Cone Width (B) inch - 0.9055
Cup Width (C) mm - 20
Cup Width (C) inch - 0.7874
Effective Center Location (a) mm - -5.8
Effective Center Location (a) inch - -0.23
Outer Diameter of Outer Ring Flange (D1) mm - 96
Outer Diameter of Outer Ring Flange (D1) inch - 3.7795
Flange Width (C2) mm - 5
Flange Width (C2) inch - 0.1969

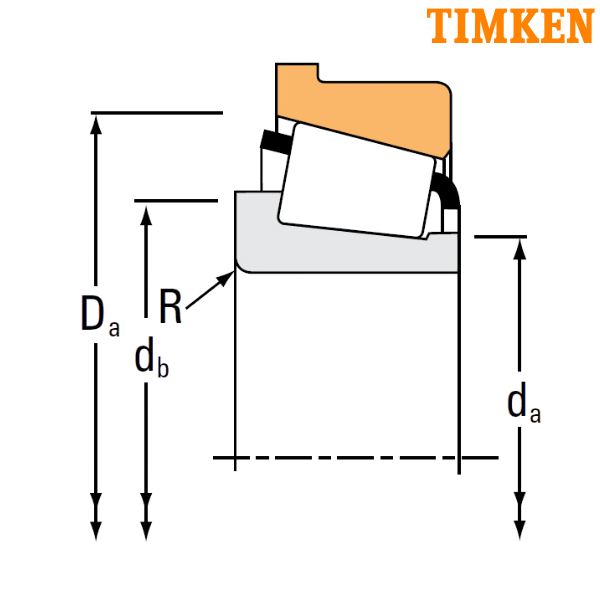

Maximum Shaft Fillet Radius (R) mm - 2
Maximum Shaft Fillet Radius (R) inch - 0.08
Cone Frontface Backing Diameter (da) mm - 50
Cone Frontface Backing Diameter (da) inch - 1.97
Cone Backface Backing Diameter (db) mm - 53
Cone Backface Backing Diameter (db) inch - 2.09
Cup Frontface Backing Diameter (Da) mm - 85
Cup Frontface Backing Diameter (Da) inch - 3.35
Geometry Factor (G1) - 31.6
Geometry Factor (G2) - 15.4
Geometry Factor (Cg) - 0.0775
Weight (kg) - 0.77
Weight (lbs) - 1.69
Inner Part Number - X30308UM
Outer Part Number - YSA30308RM
TSF - Single-Row Bearing with a Flange on the Outer Ring

** Images are for representation purposes only
