Description
Brand - TIMKEN
Item Number - X32016X/Y32016X (JXH8008AI/JYH12508TSR) TIMKEN
Also Known As - X32016X - Y32016X (JXH8008AI - JYH12508TSR)
Category - Double Row Tapered Roller Bearing (SR Type)
Bore Diameter (d) mm - 80
Bore Diameter (d) inch - 3.1496
Outer Diameter (D) mm - 125
Outer Diameter (D) inch - 4.9213
Width (T) mm - 66
Width (T) inch - 2.5984
Width (C) mm - 51.5
Width (C) inch - 2.0276
Dynamic Radial Rating (C1) N - 342000
Dynamic Radial Rating (C1) lbf - 77000
Factor (e) - 0.42
Factor (Y1) - 1.6
Factor (Y2) - 2.38
Dynamic Radial Rating (90 million revolutions) (C90) N - 51000
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 11500
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 36900
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 8300
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 88800
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 20000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.38

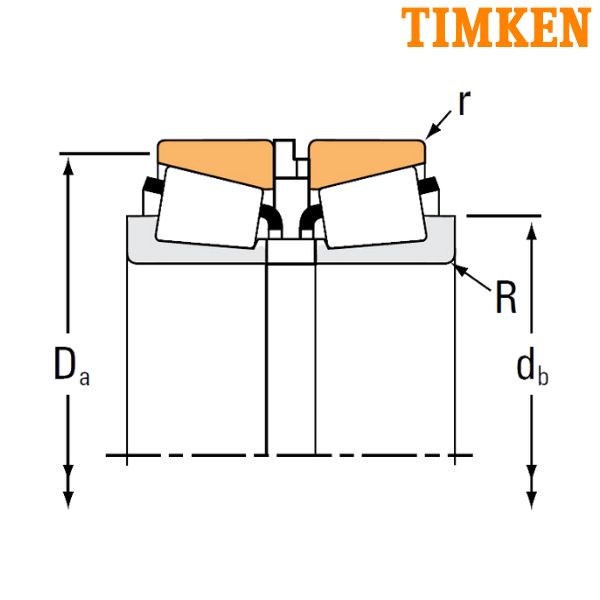

Maximum Shaft Fillet Radius (R) mm - 1.5
Maximum Shaft Fillet Radius (R) inch - 0.06
Backing Shoulder Diameter (db) mm - 91
Backing Shoulder Diameter (db) inch - 3.58
Maximum Housing Fillet Radius (r) mm - 0.6
Maximum Housing Fillet Radius (r) inch - 0.03
Backing Shoulder Diameter (Da) mm - 120
Backing Shoulder Diameter (Da) inch - 4.72
Weight of the Bearing without Snap Ring (kg) - 2.72
Weight of the Bearing without Snap Ring (lbs) - 5.99
Inner Spacer - JXH8008AI
Outer Spacer - JYH12508TSR
Snap Ring - K527332R
Inner Part Number - X32016X
Outer Part Number - Y32016X
SR - SET-RIGHT Assembly
** Images are for representation purposes only
